WELTOP Machinery provides customized foundry equipment solutions, including centrifugal casting machines, low pressure die casting machines, gravity casting equipment and automated casting systems for industrial applications.
Among various centrifugal casting applications, cylinder liner production is one of the most established and demanding processes. Cylinder liners are widely used in automotive engines, motorcycles, agricultural machinery and industrial power equipment, where consistent quality, wear resistance and dimensional accuracy are essential.
With increasing requirements for production efficiency and product consistency, manufacturers are moving from traditional manual operations toward automated centrifugal casting systems that integrate mold preparation, pouring, cooling and handling processes into a complete production solution.
Cylinder liners operate under demanding conditions involving:
High temperature
Continuous friction and wear
Repeated mechanical loading
Strict dimensional requirements
The final quality of cylinder liners depends on accurate control of multiple casting parameters, including:
Mold coating condition
Pouring temperature and speed
Mold rotation speed
Cooling process
Production cycle stability
In conventional production, manual operations may lead to variations in process control, affecting casting consistency and production efficiency.
For high-volume cylinder liner manufacturing, the key challenge is not only increasing output, but also maintaining stable casting quality during continuous production.
Centrifugal casting is widely used for cylindrical components because the rotating process provides several advantages:
The centrifugal force helps distribute molten metal evenly along the mold wall, contributing to a dense casting structure and uniform wall thickness.
Controlled rotation speed, pouring conditions and cooling processes help improve production repeatability.
The process is suitable for tubular components where material performance and structural integrity are critical.
For these reasons, centrifugal casting remains an important manufacturing technology for cylinder liners and other cylindrical metal components.
To meet the requirements of high-volume cylinder liner production, WELTOP Machinery developed an automated seven-station centrifugal casting system.
The system is designed for manufacturing:
Automotive cylinder liners
Motorcycle cylinder liners
Similar tubular metal components

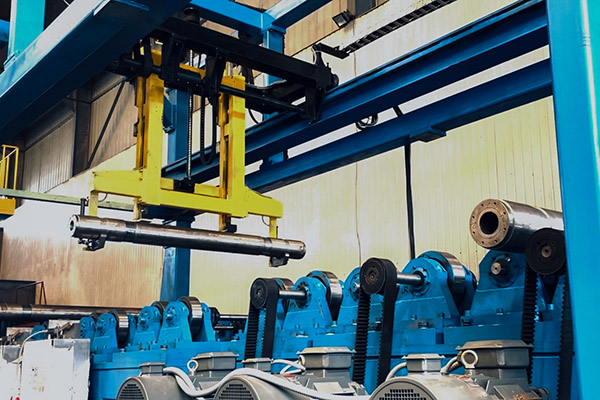

The production line integrates seven working stations:
Mold coating station
Cleaning station
Three pouring stations
Water cooling station
Casting removal station
Multiple molds circulate automatically between stations through upper and lower conveying systems according to the production sequence:
Casting Removal → Cooling → Cleaning → Coating → Pouring
This continuous production concept reduces manual handling and improves process stability.
The system is equipped with an automatic pouring unit that transfers molten iron from the holding furnace to the pouring station.
The pouring speed can be adjusted according to process requirements, helping maintain stable casting conditions and consistent product quality.
Mold coating is a critical process in centrifugal casting.
The automatic spraying system controls coating application to achieve:
More uniform coating distribution
Improved process repeatability
Stable casting conditions
Consistent mold preparation helps reduce quality variations during continuous production.
The automatic control system is designed to improve production flexibility.
When an individual mold requires inspection or adjustment due to issues such as casting removal or coating quality, the affected mold can be handled separately without stopping the entire production process.
After correction, the mold can return to normal production.
This design helps minimize downtime and improve overall production efficiency.
The automated centrifugal casting system is suitable for cylinder liner production with typical specifications:
Cylinder liner outer diameter: Ø70–Ø100 mm
Mold length: 2000–2100 mm
Mold rotation speed: 0–2400 rpm
The multi-station design allows multiple molds to operate simultaneously, supporting efficient mass production while maintaining stable casting quality.
Modern foundries are increasingly focusing on automation, process stability and production efficiency.
For high-volume components such as cylinder liners, automated centrifugal casting systems provide advantages including:
Consistent casting parameters
Reduced dependence on manual operation
Improved production efficiency
Better working conditions
By combining centrifugal casting technology with automated material handling and process control, manufacturers can achieve more reliable and efficient production of engine components.
WELTOP Machinery specializes in centrifugal casting technology and customized foundry equipment solutions.
Our products include:
Horizontal centrifugal casting machines
Automated centrifugal casting production lines
Low pressure die casting machines
Gravity casting equipment
We support customers worldwide in developing casting solutions for cylinder liners, bronze components, automotive parts and other industrial applications.
For more information about automated centrifugal casting systems, please contact WELTOP Machinery.
