Practical Considerations for Producing More Consistent Bronze and Copper Alloy Components

Introduction

Bronze bushings and sleeves are widely used in heavy-duty machinery, hydraulic equipment, marine systems and industrial applications. These components often operate under high loads, continuous friction and demanding working conditions.

For manufacturers, producing one qualified bronze bushing is usually not the biggest challenge. The real difficulty is maintaining stable quality during repeated production.

In daily production, foundries may encounter problems such as:

• Porosity discovered after machining;

• Variation in hardness and wear resistance between batches;

• Unstable machining performance;

• High material consumption caused by excessive machining allowance.

These issues can increase manufacturing costs and affect the service life of the final component.

For cylindrical bronze components, centrifugal casting provides a practical production method because the process matches the structural characteristics of bushings and sleeves.

1. Internal Defects After Machining: A Common Challenge in Bronze Castings

One of the most common problems reported by bronze component manufacturers is that casting defects are sometimes only discovered during machining.

A casting may appear acceptable externally, but after machining, defects such as:

• Shrinkage porosity;

• Gas-related defects;

• Non-uniform areas;

may become visible.

For bronze bushings, these defects can affect:

• Load-bearing capability;

• Wear resistance;

• Service life.

The reason is that bronze alloys have complex solidification behavior. During cooling, the interaction between alloy composition, temperature conditions and solidification rate directly influences the final casting structure.

Therefore, controlling the solidification process is a key factor in improving bronze casting quality.

2. Material Utilization: Reducing Waste of High-Value Copper Alloys

Copper alloys are widely used because of their excellent performance, but their material cost is also an important consideration for manufacturers.

Traditional casting methods may require larger machining allowances to remove possible defects and achieve the final dimensions.

For hollow cylindrical components such as bushings and sleeves, centrifugal casting offers a different approach.

During the process, molten bronze is poured into a rotating mold. The rotation distributes the molten metal along the mold wall and forms a tubular casting shape.

This allows manufacturers to produce a casting closer to the final geometry, reducing unnecessary material removal during machining.

For high-volume bronze production, improved material utilization can have a direct impact on manufacturing cost.

3. Maintaining Consistent Quality Between Production Batches

Many bronze component manufacturers face another challenge:

The first batch meets requirements, but later batches show differences.

These variations are often related to:

• Mold temperature changes;

• Different coating conditions;

• Inconsistent pouring operation;

• Changes in cooling conditions.

In manual production, operator experience plays an important role. However, when production volume increases, relying only on operator skills becomes more difficult.

A stable centrifugal casting process requires consistent control of:

• Mold preparation;

• Pouring temperature;

• Pouring speed;

• Rotation speed;

• Cooling conditions.

The purpose is not only to produce faster, but to make each production cycle more repeatable.

4. How Centrifugal Casting Helps Improve Bronze Component Production

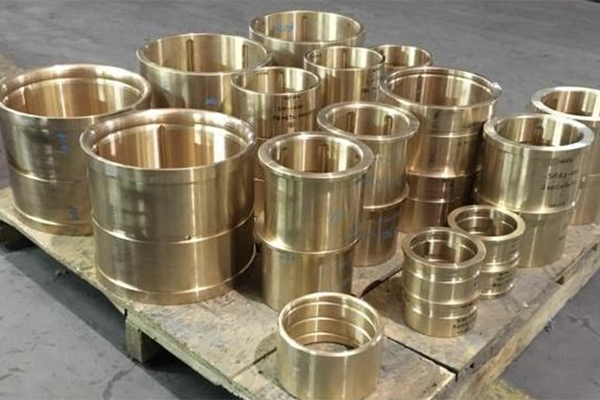

Centrifugal casting is widely used for cylindrical copper alloy components, including:

• Bronze bushings;

• Bronze sleeves;

• Bearing rings;

• Wear-resistant rings.

The main advantage of the process is that it uses controlled rotation to influence metal distribution and solidification.

When properly applied, centrifugal casting can help manufacturers achieve:

Improved Casting Integrity

The controlled filling process helps reduce internal defects and improve the overall soundness of cylindrical castings.

Suitable Structure for Hollow Components

Because many bronze components are cylindrical, centrifugal casting naturally matches their geometry and reduces unnecessary material usage.

Stable Production for Industrial Applications

With appropriate process control, centrifugal casting can support continuous production where consistency is critical.

5. Important Process Factors for Bronze Centrifugal Casting

Although centrifugal casting provides advantages, the final casting quality still depends on proper process control.

Mold Preparation

The mold condition directly affects heat transfer and casting surface quality.

Important factors include:

• Mold surface condition;

• Coating thickness and uniformity;

• Mold preheating temperature.

An unstable mold condition may lead to differences between production cycles.

Pouring Control

Bronze alloys require suitable pouring conditions.

Changes in:

• Metal temperature;

• Pouring speed;

• Filling time;

can influence solidification behavior and casting quality.

Stable pouring conditions are especially important for continuous production.

Rotation Speed Selection

The correct rotation speed depends on:

• Alloy type;

• Casting diameter;

• Wall thickness;

• Casting length.

A higher rotation speed does not always mean better results.

The objective is to achieve proper metal distribution while maintaining suitable solidification conditions.

6. The Role of Centrifugal Casting Equipment

For bronze component manufacturers, equipment stability is an important part of process control.

A suitable centrifugal casting machine should provide:

• Stable rotation speed;

• Reliable mold installation;

• Safe operation under rotating loads;

• Repeatable production conditions.

For higher production requirements, automation can further improve consistency through:

• Automatic mold handling;

• Automatic coating systems;

• Automatic pouring systems;

• Process monitoring.

Automation is not only about increasing output. More importantly, it helps reduce variation caused by manual operation.

Conclusion

Producing high-quality bronze bushings requires coordination between material selection, mold design, process parameters and equipment stability.

Centrifugal casting is not a solution that automatically eliminates every casting problem. However, when the process is properly designed and controlled, it provides an effective method for manufacturing bronze and copper alloy cylindrical components with stable quality and efficient material utilization.

For foundries looking to improve production consistency, reduce waste and meet higher quality requirements, optimizing the centrifugal casting process is a practical approach.

About WELTOP Machinery

WELTOP Machinery specializes in centrifugal casting technology and customized foundry equipment solutions.

The company provides centrifugal casting machines for applications including:

• Bronze bushings and sleeves;

• Cylinder liners;

• Copper alloy components;

• Other industrial cylindrical castings.
