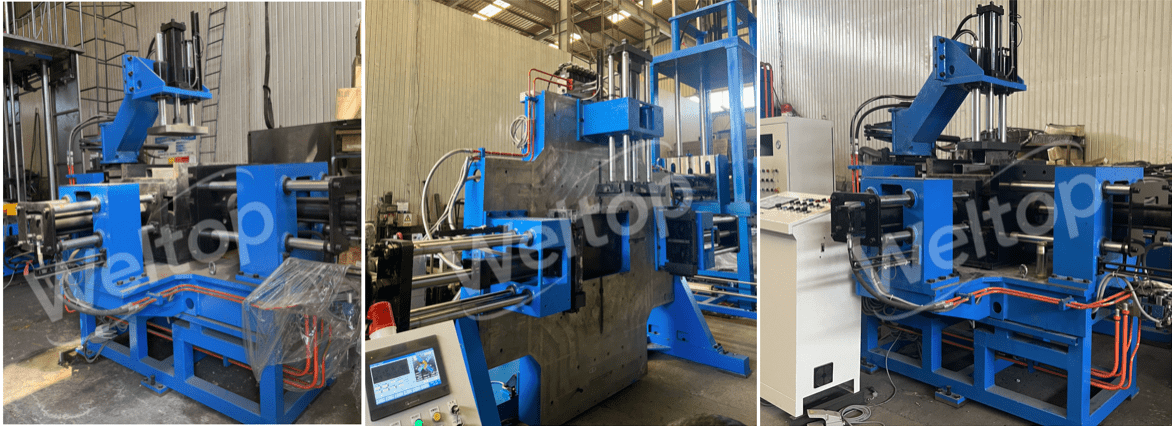

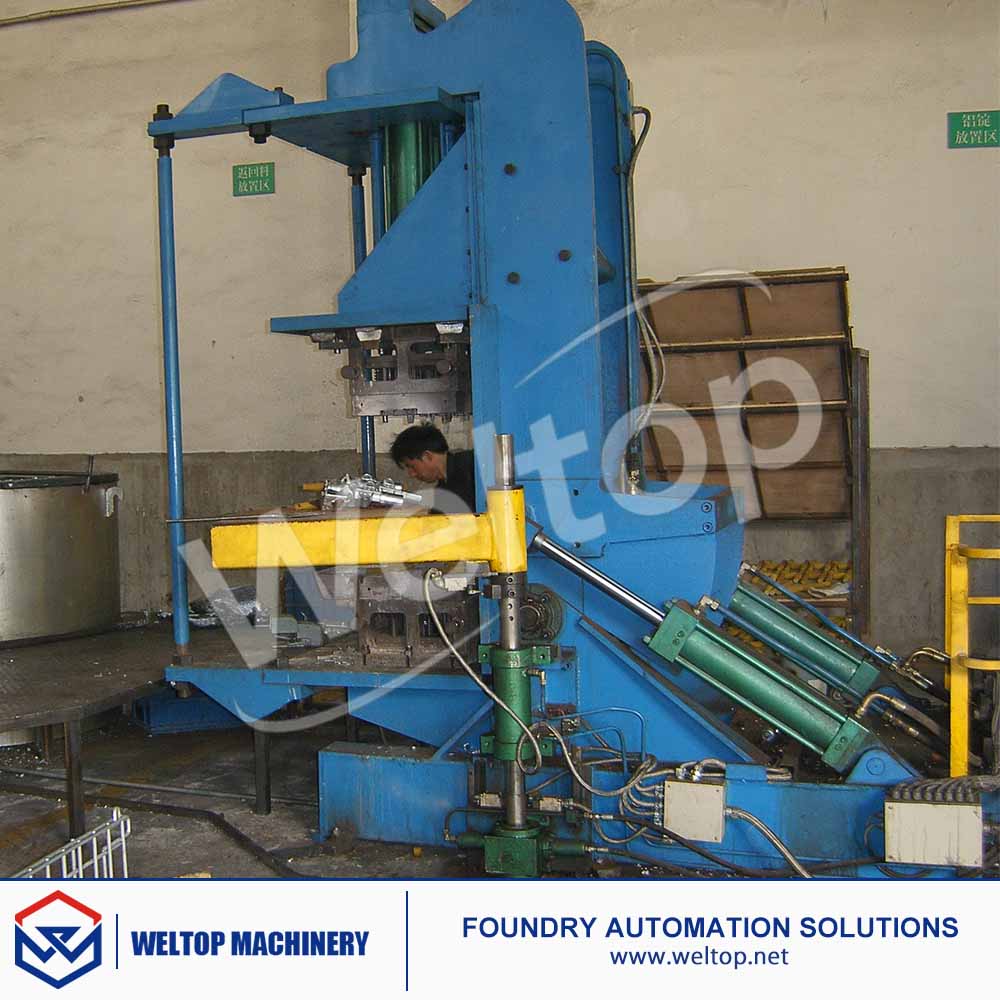

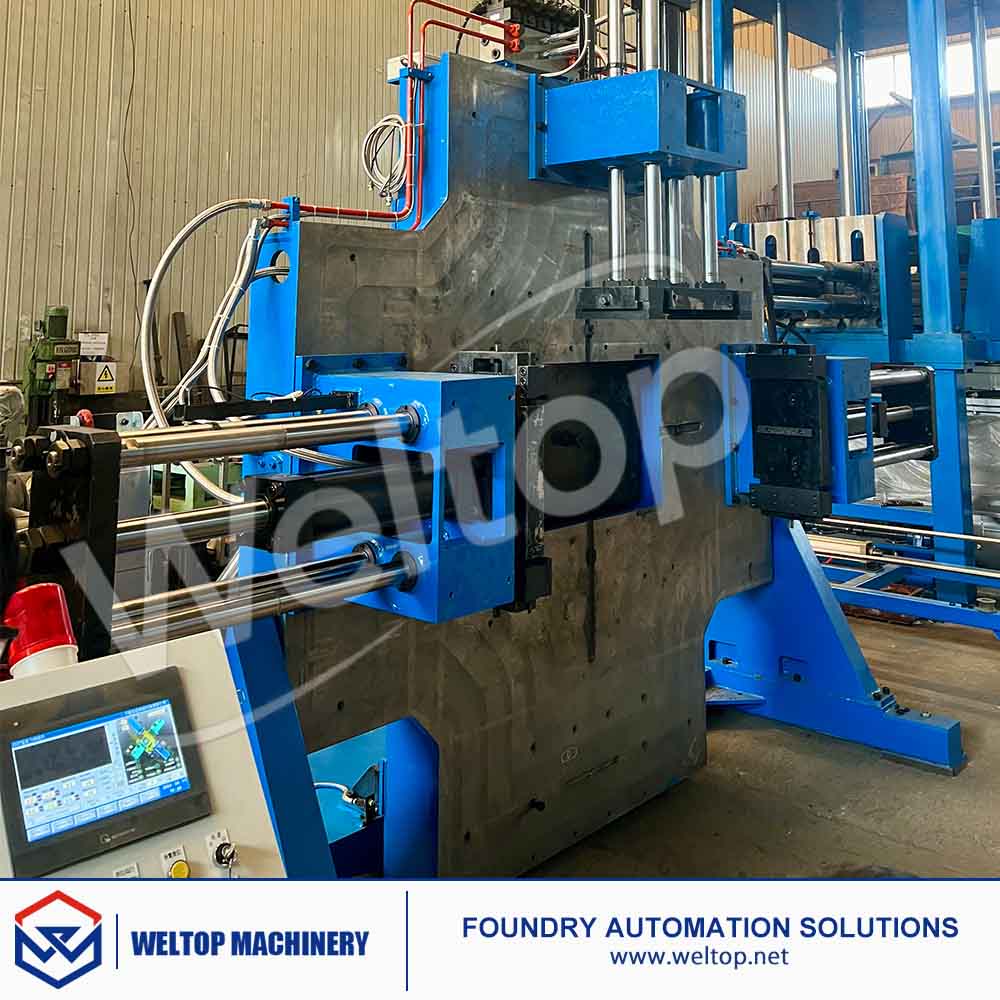

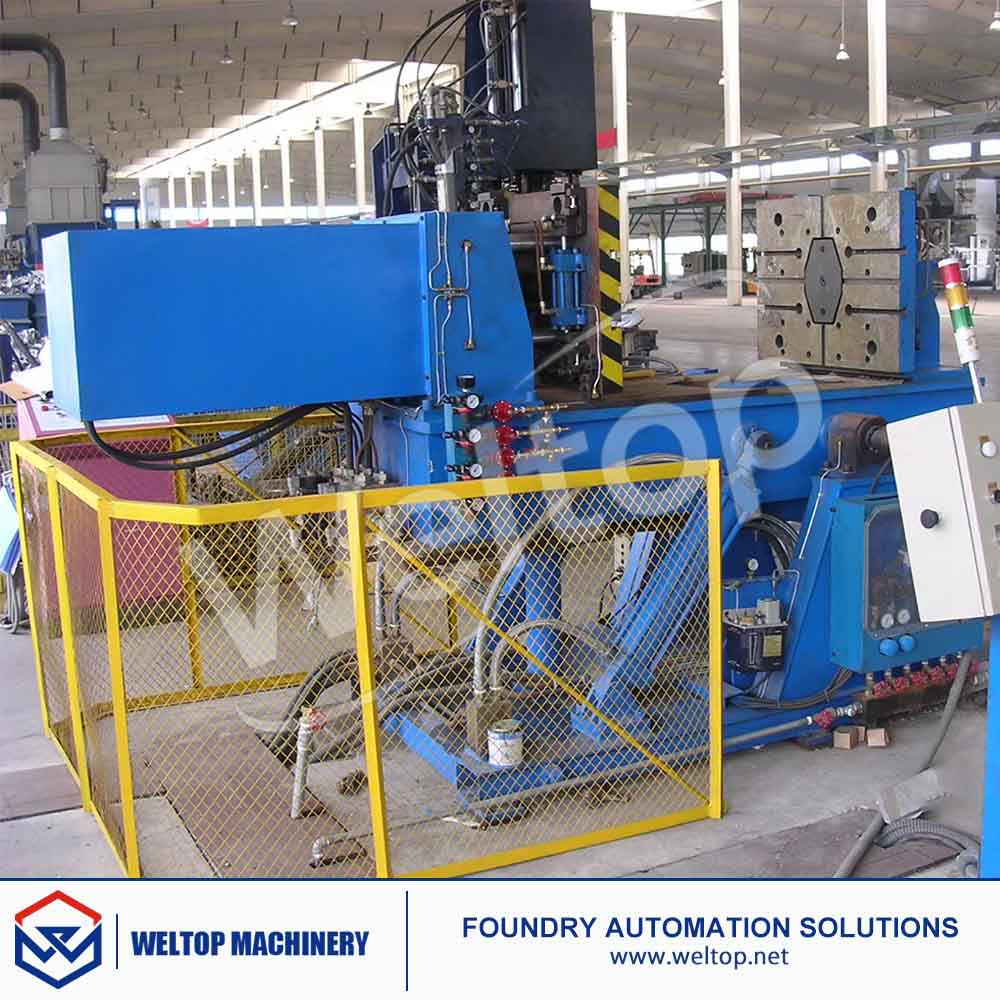

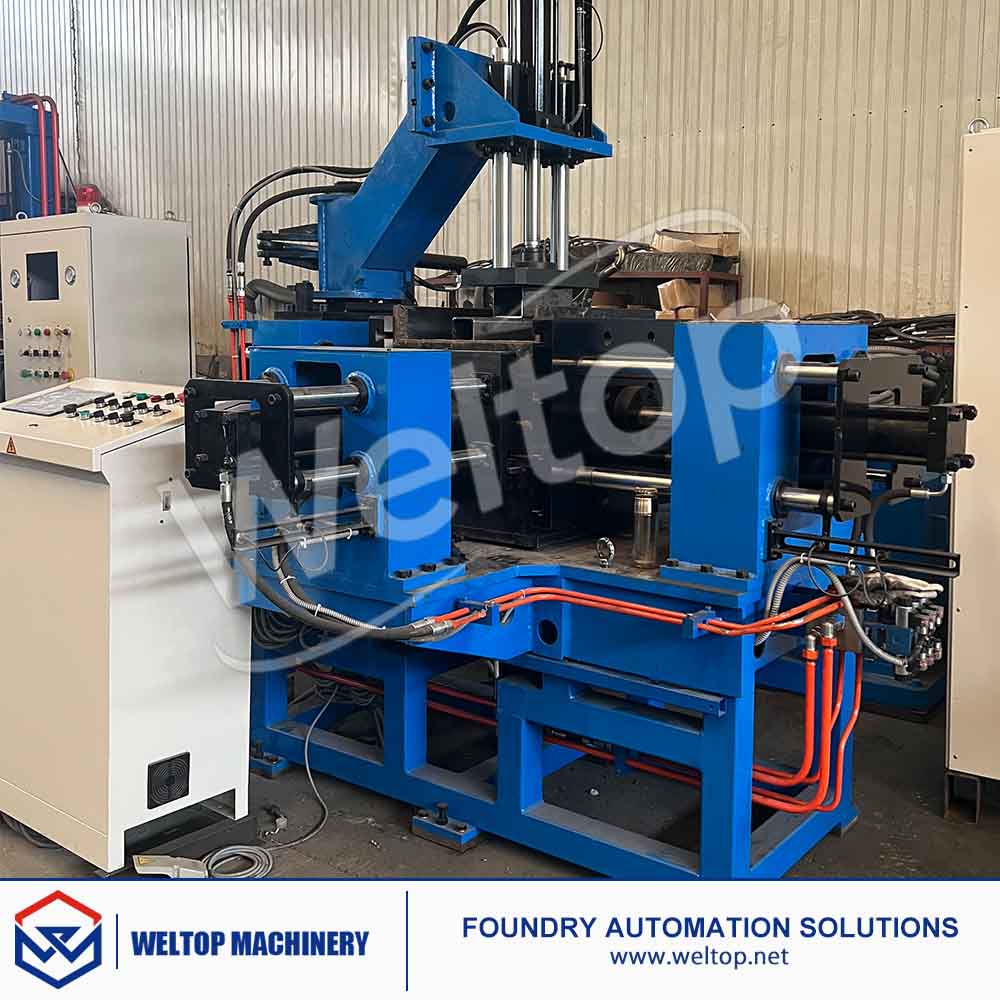

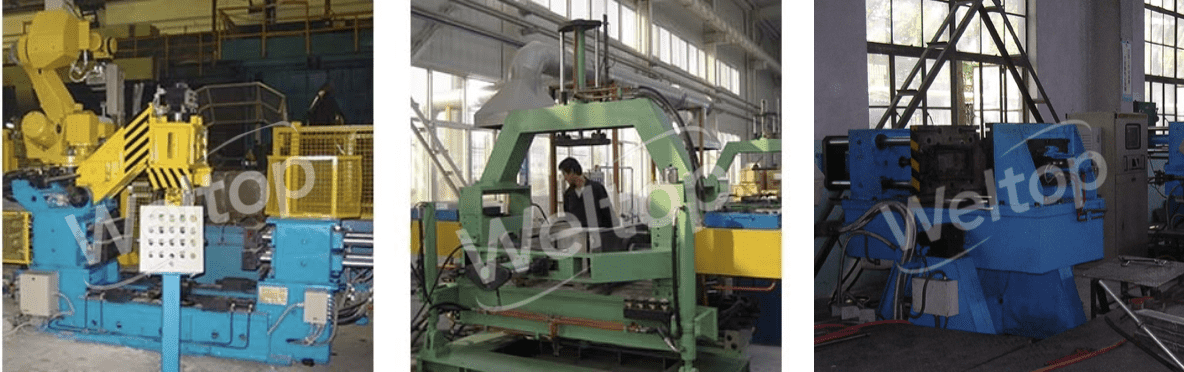

J33
WELTOP
1. Variable-Speed Tilting System
Adjustable tilting speed and angle (0–90°) for controlled mold filling.
2. Hydraulic Mold Operation
Hydraulic mold opening, closing, and casting ejection.
3. Mold Cooling System
Air or water cooling options to meet different casting process requirements.
4. PLC Control System
PLC and touchscreen HMI for parameter settings and machine operation.
Technical Configuration
The J33 Series features a rigid machine frame, tilting mechanism, hydraulic mold opening and closing system, and casting ejection system.
Adjustable Tilting: 0–90° tilting angle with adjustable speed.
Hydraulic Operation: Mold opening, closing, and casting ejection.
PLC Control: Machine operation and process parameter settings.
Applications
Suitable for gravity die casting of aluminum alloy components, including:
Automotive components and housings
Valve bodies and pump housings
Other industrial aluminum alloy castings
Machine configuration depends on casting dimensions, mold design, and production requirements.
TECHNICAL PARAMETERS
| Parameter | J334 | J336 | J337 | J338 | J339 | J3310 | Unit |
| Moving Platen Size | 400 × 260 | 600 × 480 | 700 × 630 | 800 × 600 | 900 × 600 | 1000 × 800 | mm |
| Moving Platen Stroke | 350 | 400 | 560 | 600 | 550 | 760 | mm |
| Minimum Mold Opening Distance | 200 | 360 | 400 | 500 | 400 | 445 | mm |
| Mold Opening Force | 21.5 | 60 | 75 | 75 | 80 | 120 | kN |
| Tilting Angle | 0–90 | 0–90 | 0–90 | 0–90 | 0–90 | 0–90 | ° |
| Ejection Force | 20 | 35 | 35 | 70 | 80 | 120 | kN |
| Ejection Stroke | 50 | 80 | 100 | 100 | 50 | 50 | mm |
