J522
WELTOP

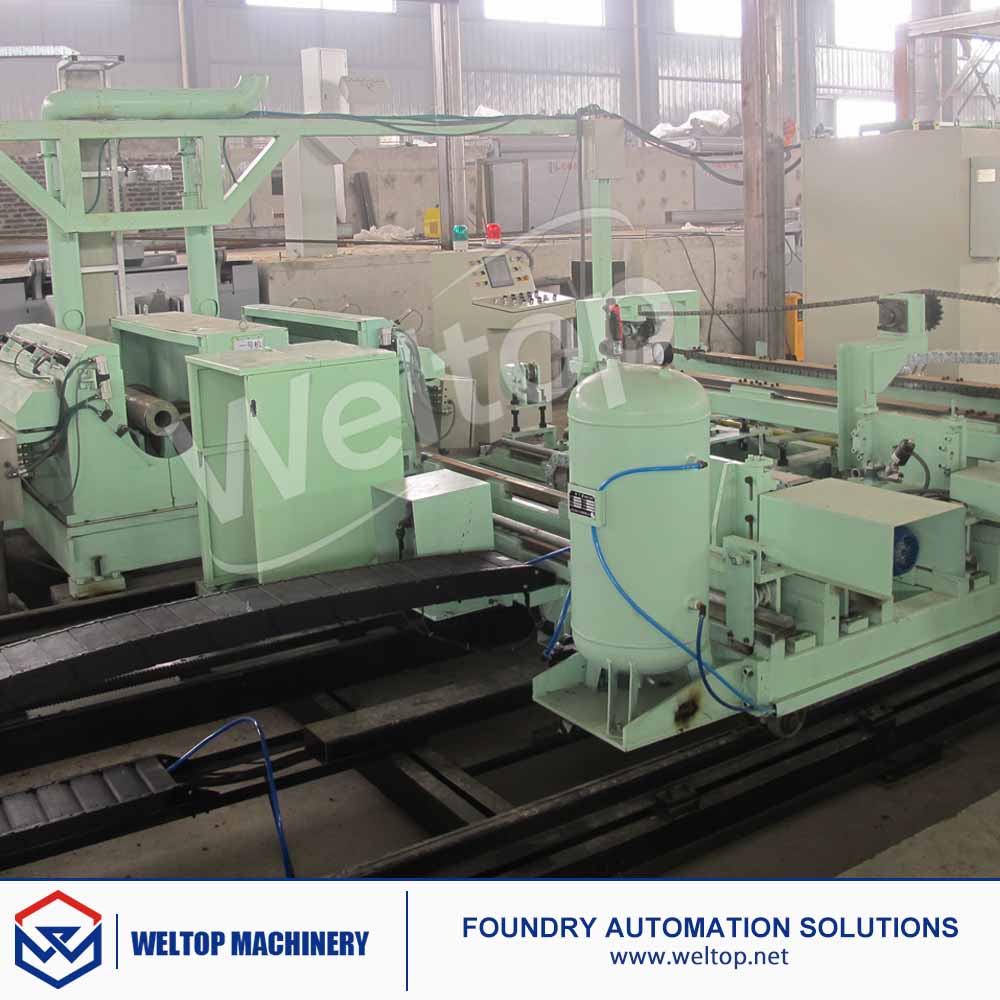

The J522 dual-station centrifugal casting system is developed for automated production of cast iron cylinder liners.

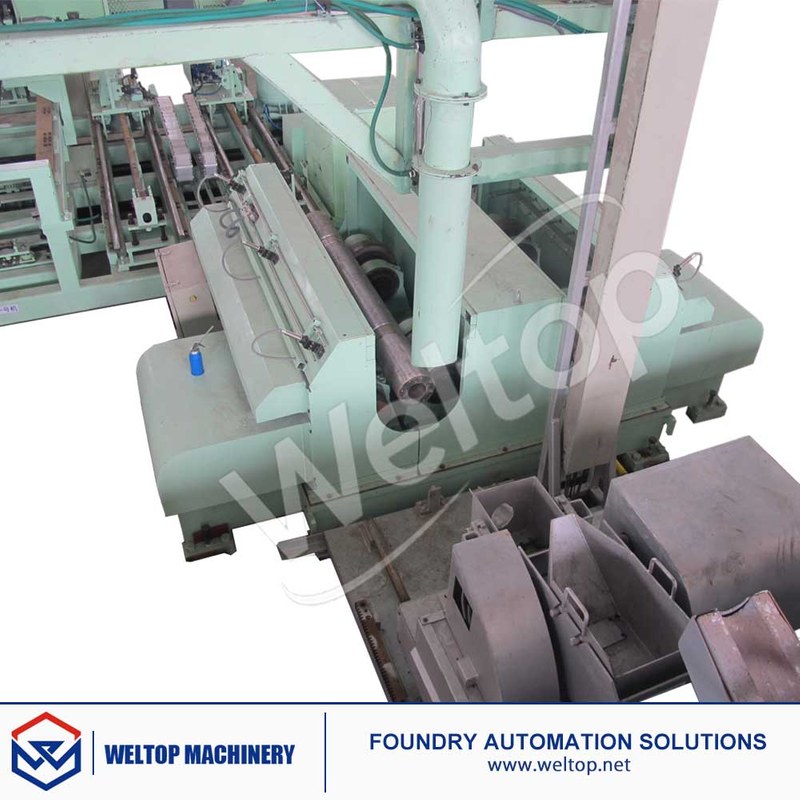

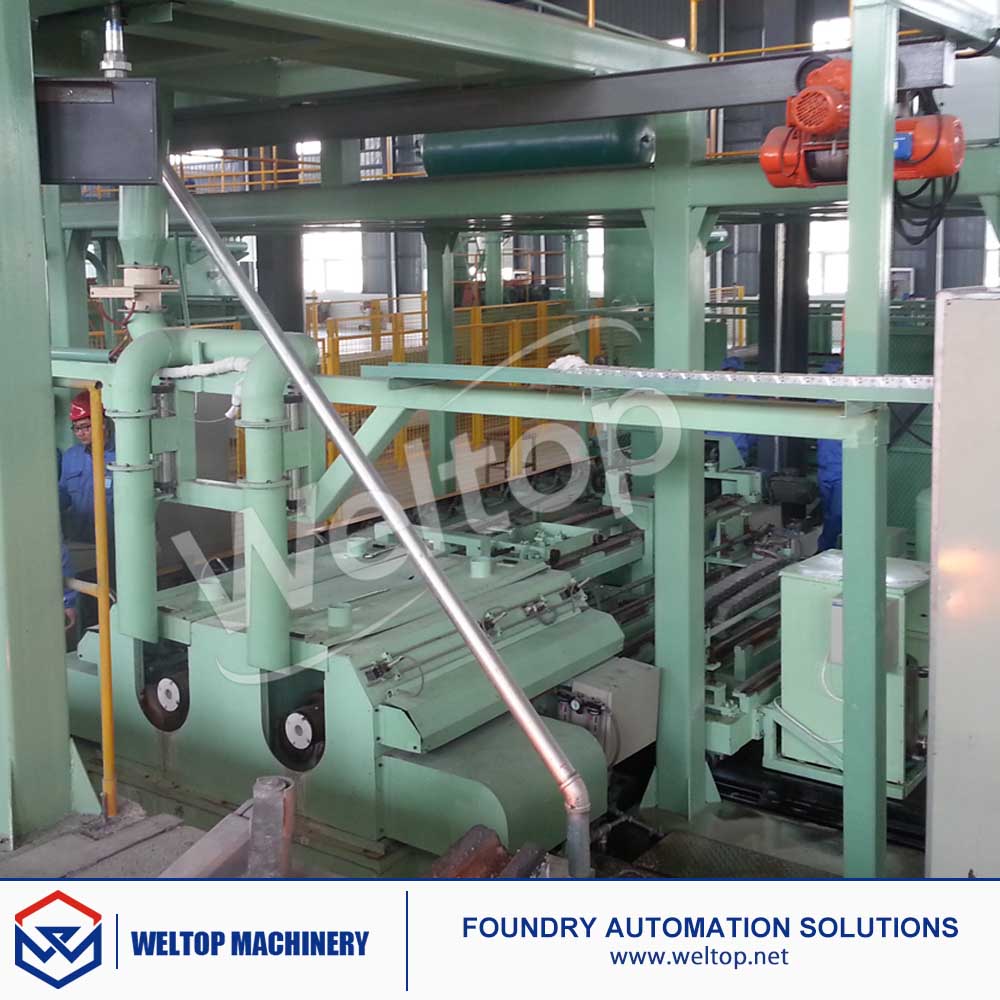

Two centrifugal casting machines operate with a shared auxiliary system that coordinates mold cleaning, coating, pouring, cooling and casting extraction.
Machine configuration, mold design and production capacity are evaluated according to casting dimensions, process requirements and target output.

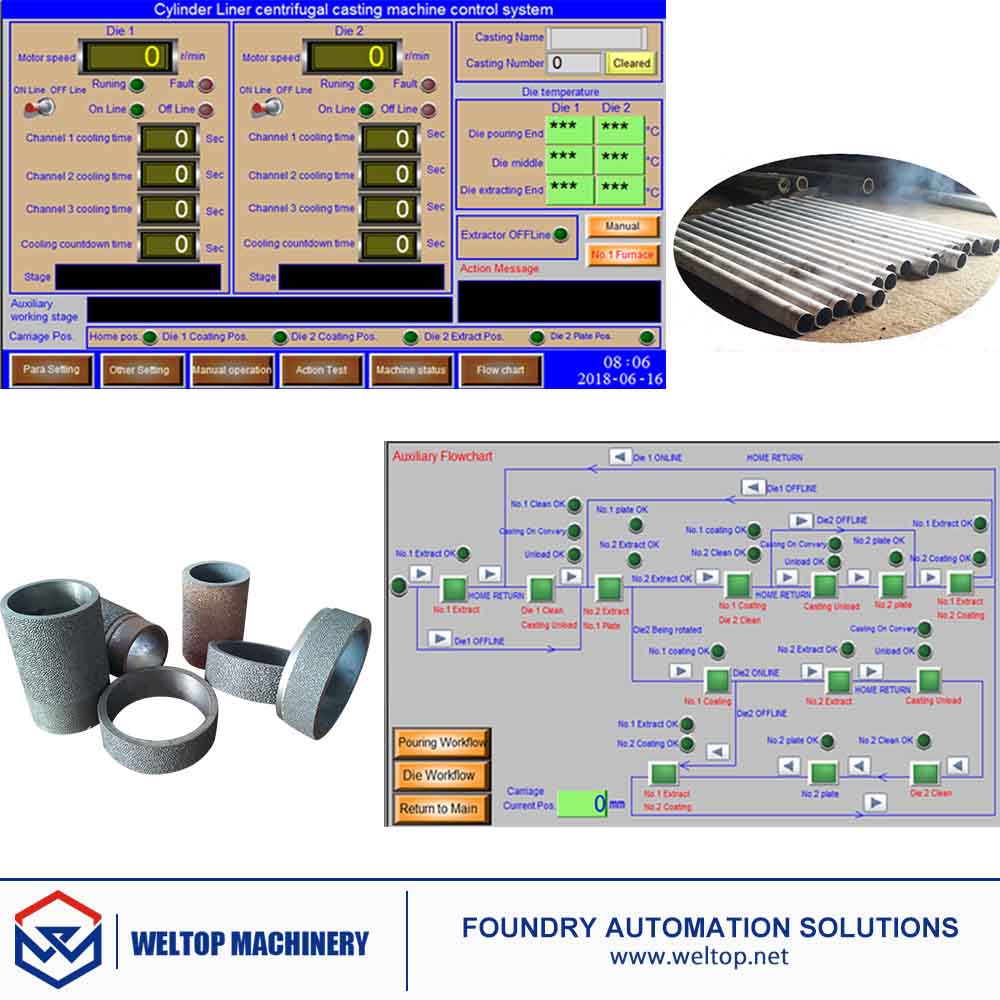

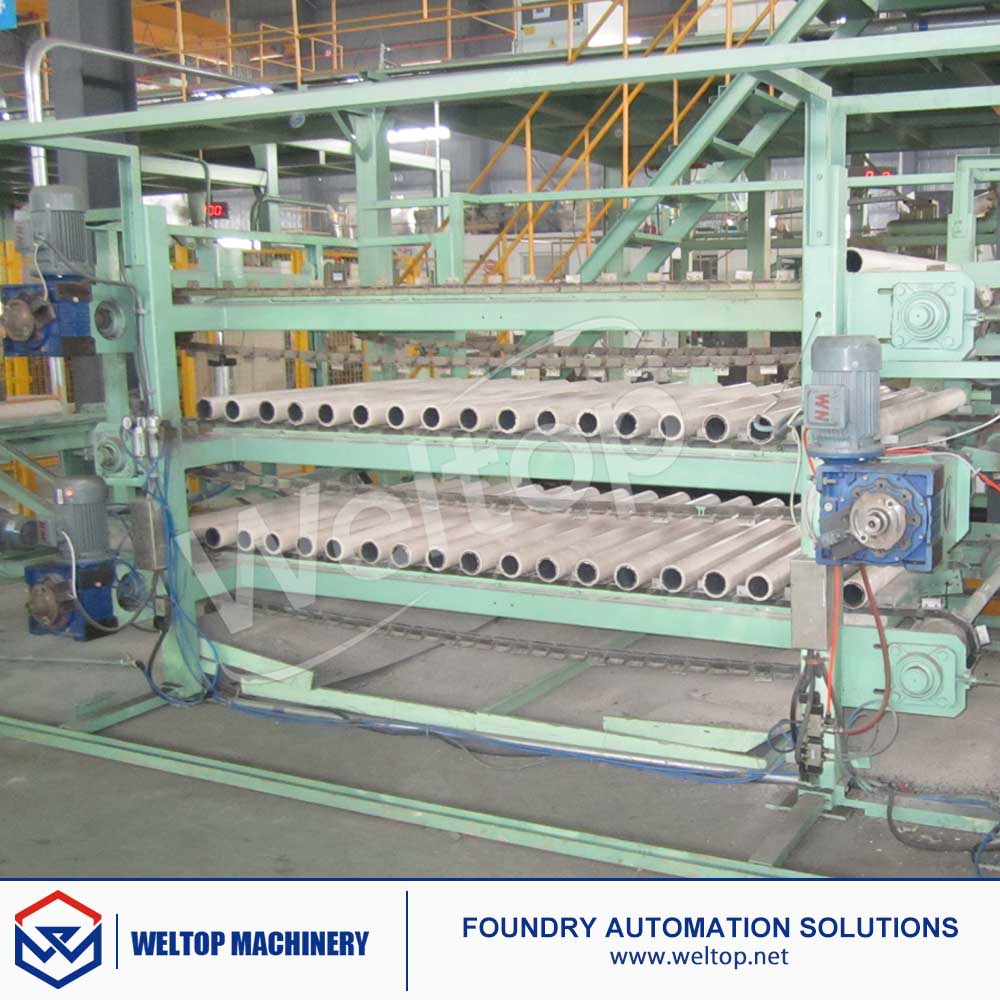

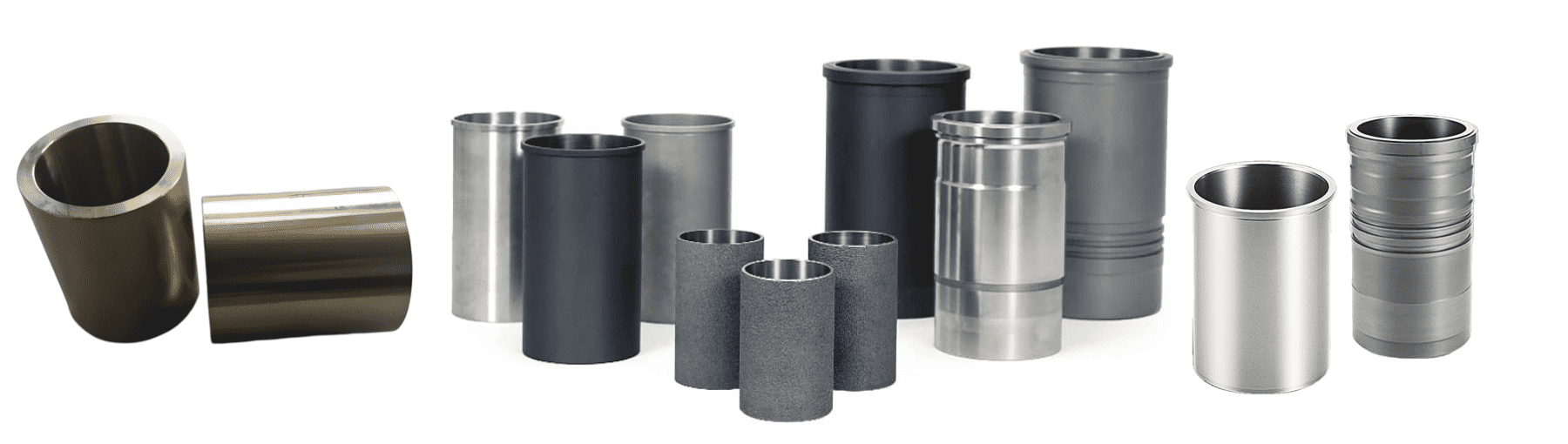

Key Features01 Dual-Station Production System 02 Automated Mold Preparation 03 Automatic Pouring System 04 Integrated Cooling & Extraction 05 PLC-Based Automation | Automated Casting ProcessMold Cleaning → Mold Coating → Automatic Pouring → Centrifugal Casting & Cooling → Casting Extraction The two casting stations operate with a shared automated auxiliary system to coordinate the production cycle. - Automated cycle time: 2-4min/casting (depending on casting size). Typical Applications✓ Automotive Engine Cylinder Liners ✓ Diesel Engine Cylinder Liners ✓ Compressor Cylinder Liners ✓ Other Suitable Tubular Cast Iron Components |
Technical parameters
No. | Parameter | Value | Unit |
1 | Casting Outer Diameter Range | Φ60~Φ120 | mm |
2 | Casting Length | 1600 | mm |
3 | Mold Raceway Diameter | Φ100~Φ180 | mm |

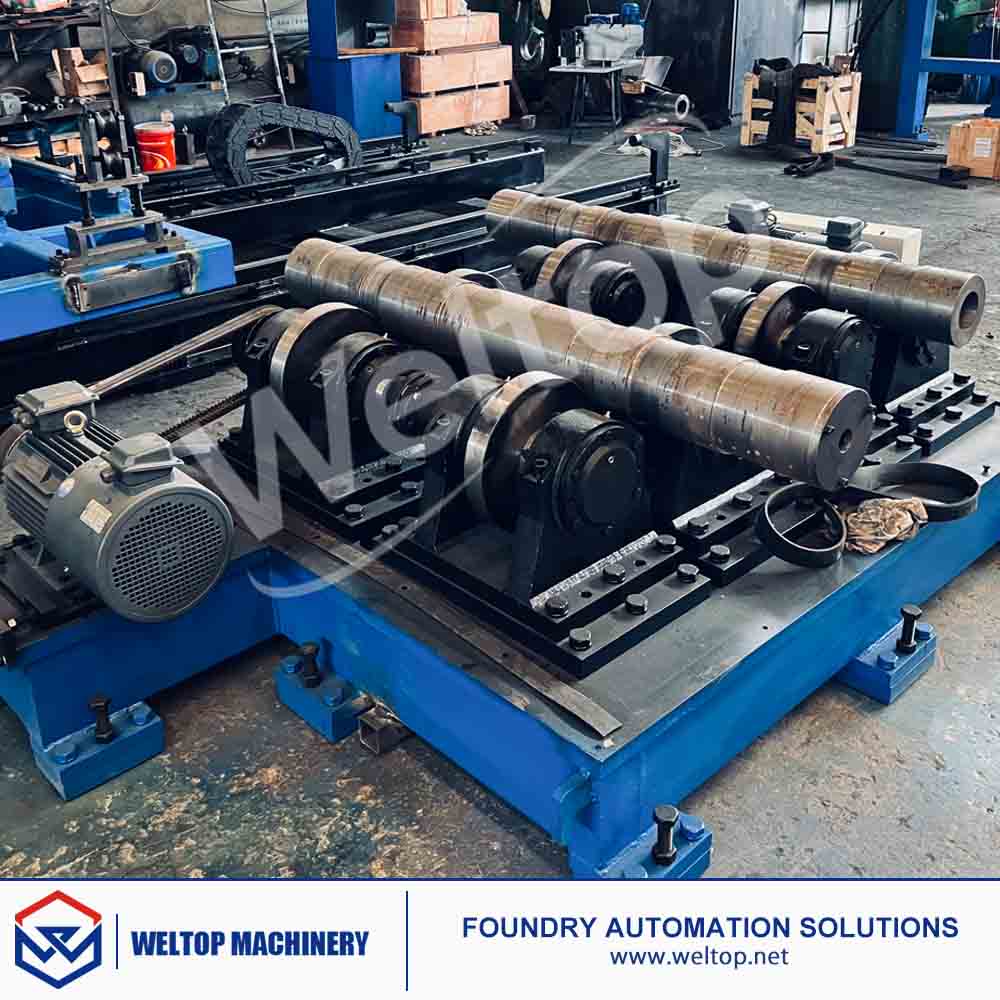

4 | Support Roller Dimensions | Φ300x70 | mm |
5 | Distance Between Support Rollers | 745 | mm |
6 | Mold Centerline Height | 720 | mm |
7 | Mold Rotational Speed | 0~2000 | rpm |
8 | Main Drive Motor Power | 7.5 | KW |
Specifications are for reference. Final machine configuration and production capacity depend on casting and process requirements.
