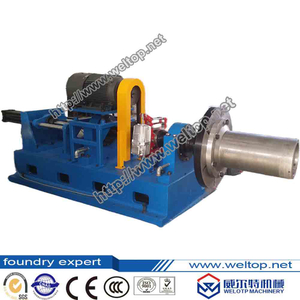

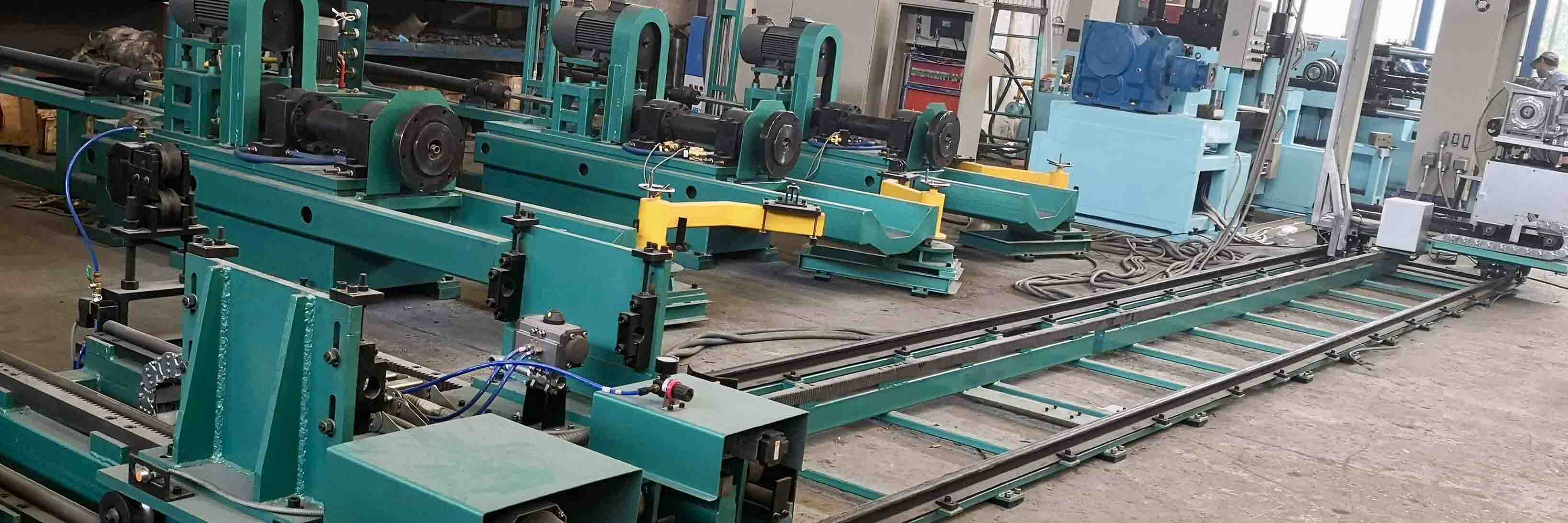

Engineered for precision production of small-to-medium diameter castings including sleeves, barrels, and flanges, the J514 combines robust construction with advanced process control. Its horizontal cantilever design delivers reliable performance in high-volume foundry applications.
✅ Core Components:
• Main Machine: Structural and operational heart
• Hydraulic System: Precision ejection
• Electrical Control System: Automated process management
• Water Cooling System: Thermal management
• Safety Shield: Operator protection
✅ Technical Specifications & Advantages:
1. High-Performance Main Machine
o Integrates bed, turntable, speed-regulating motor, bearing housing, spindle, transmission mechanism, and hydraulic ejector system
o AC frequency-controlled motor enables stepless speed regulation via transmission mechanism
o Benefit: Adapts seamlessly to diverse casting diameters and process requirements
2. Hydraulic Ejection System
o Comprises hydraulic station, ejector cylinder, and ejector rod
o Benefit: Automated post-solidification casting ejection enhances productivity and reduces manual handling
3. Advanced Cooling Technology
o Dual-stage cooling for:
Spindle bearings: Extends component lifespan
Mold & castings: Accelerates solidification
o Benefit: Increases production efficiency by up to 25% while protecting critical machinery
4. Precision Drive System
o Frequency-controlled AC motor drive
o Benefit: Delivers smooth, vibration-free operation with wide speed range
5. PLC Automation
o Full-process automated control
o Touchscreen interface for parameter management
o Benefit: Ensures batch consistency and reduces operator error
6. Integrated Safety Systems
o Reinforced safety shield with interlock protection
o Hydraulic braking system for controlled deceleration
o Benefit: Complies with safety standards
✅ Application-Optimized Design:
Specifically engineered for high-yield production of precision components:
✓ Sleeve castings (Ø50-400mm)
✓ Barrel liners
✓ Flange rings
✓ Symmetrical rotationally cast parts
Technical parameters
NO. | Parameter | Value | Unit |
1 | Maximum Diameter of Casting | Ф400 | mm |
2 | Minimum Diameter of Casting | Ф150 | mm |
3 | Maximum Length | 500 | mm |
4 | Casting Length at Maximum Diameter | ≤350 | mm |
5 | Casting Diameter at Maximum Length | ≤φ200 | mm |
6 | Max. Load (Casting + Mold) | 400 | Kg |
7 | Main Motor Power | 7.5 | Kw |
8 | Spindle Speed | 0～1200 | r.p.m |
9 | Hydraulic Pump Motor Power | 2.2 | Kw |
10 | Ejecting Force | 30 | KN |
11 | Ejecting Stroke | 300 | mm |
