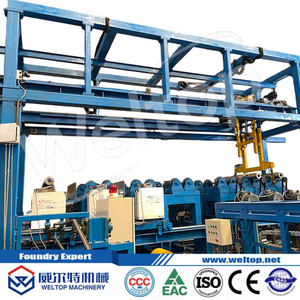

The WELTOP J8 is a fully automated centrifugal casting line for mass production of cylinder liners.
Integrated cleaning, coating, pouring, cooling and extraction systems ensure consistent quality, higher productivity and lower labor costs.
J8
WELTOP
The WELTOP J8 Automated Centrifugal Casting Line is designed for continuous production of cylinder liners and other tubular castings.

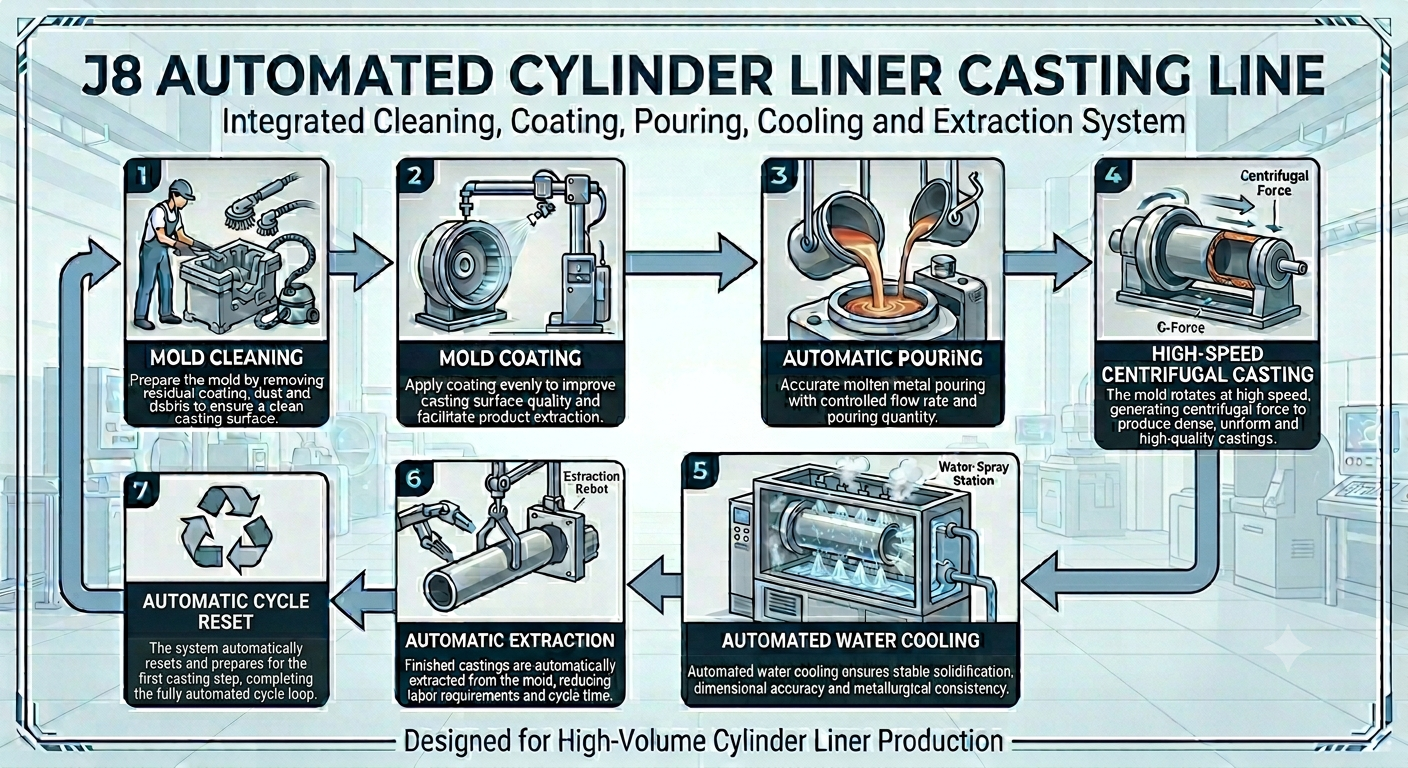

Multiple casting stations are arranged on a rotary indexing platform, while dedicated auxiliary units automatically perform mold cleaning, coating, pouring, cooling and casting extraction.
The entire process is controlled by PLC and HMI systems to ensure stable production, repeatable process parameters and consistent casting quality.
✅ Fully automated casting process
✅ One operator required
✅ High productivity with compact footprint
✅ Servo-controlled indexing platform
✅ Multi-stage coating system
✅ Automatic pouring with weight control
✅ Water cooling for mold temperature management
✅ Consistent wall thickness and casting quality
✅ Reduced labor costs and human error
✅ Suitable for continuous mass production
✅ Application • Engine Cylinder Liners • Compressor Liners • Hydraulic Sleeves • Tubular Castings | ✅ Why Choose This Line? ✔ One operator can manage the entire production process ✔ Reduced labor cost and process dependency ✔ Stable wall thickness and metallurgical consistency ✔ Automatic pouring weight control ✔ Improved mold service life ✔ Suitable for continuous mass production |
Technical parameters
No. | Name | Values | Unit |
1 | Turntable Diameter | 2500 | mm |
2 | Number of Station | 8 | |
3 | Rotation Power of Motor | 4 | Kw |
4 | Mold Rotation Diameter | Ø420 | mm |
5 | Casting Maximum Diameter | 120 | mm |
6 | Casting Maximum Length | 300-600 | mm |
7 | Speed of Mold | 0~1600 | rpm |
8 | Main Machine Power of Motor | 5.5 | kw |
9 | Centre-to Centre Spacing Between The Ground and Mold | 1000 | mm |
