Compact Centrifugal Casting Solution for Small and Medium Hollow Castings
✓ Adjustable Mold Speed
✓ Hydraulic Casting Extraction
✓ Compact Cantilever Design
J512
WELTOP

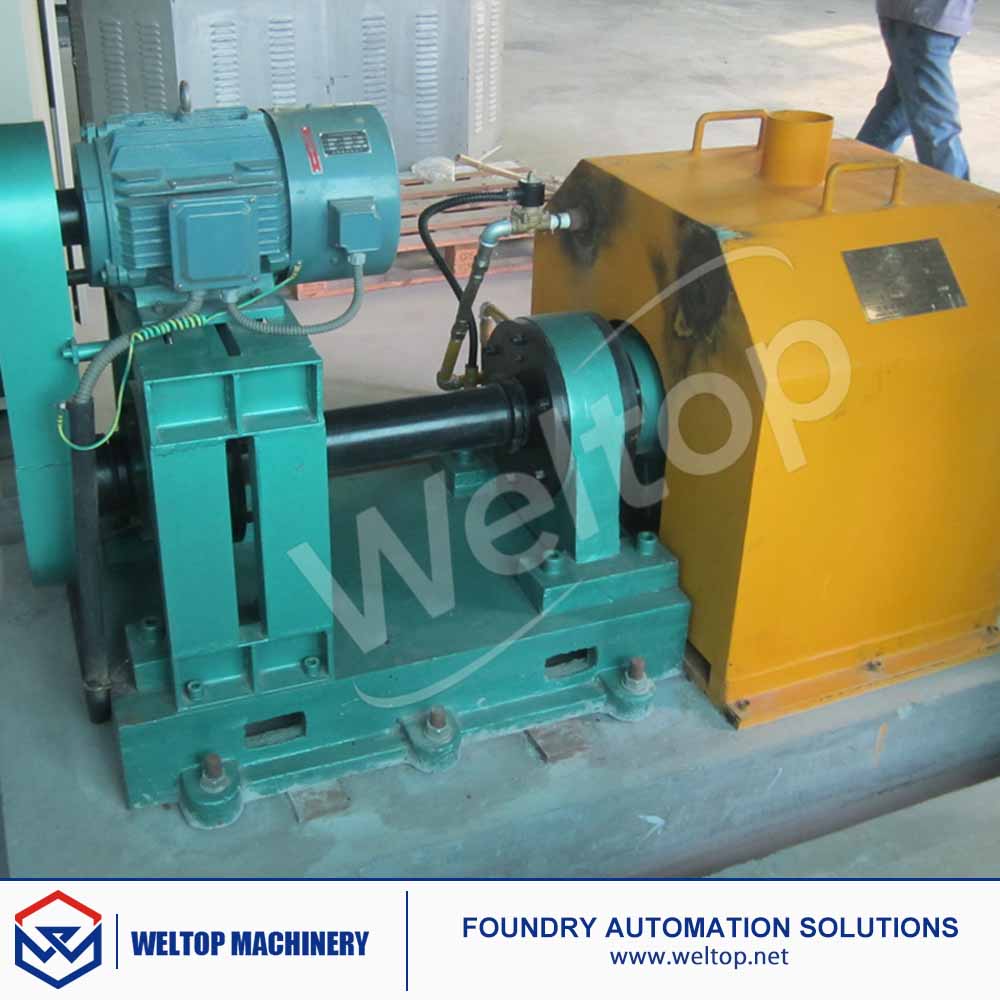

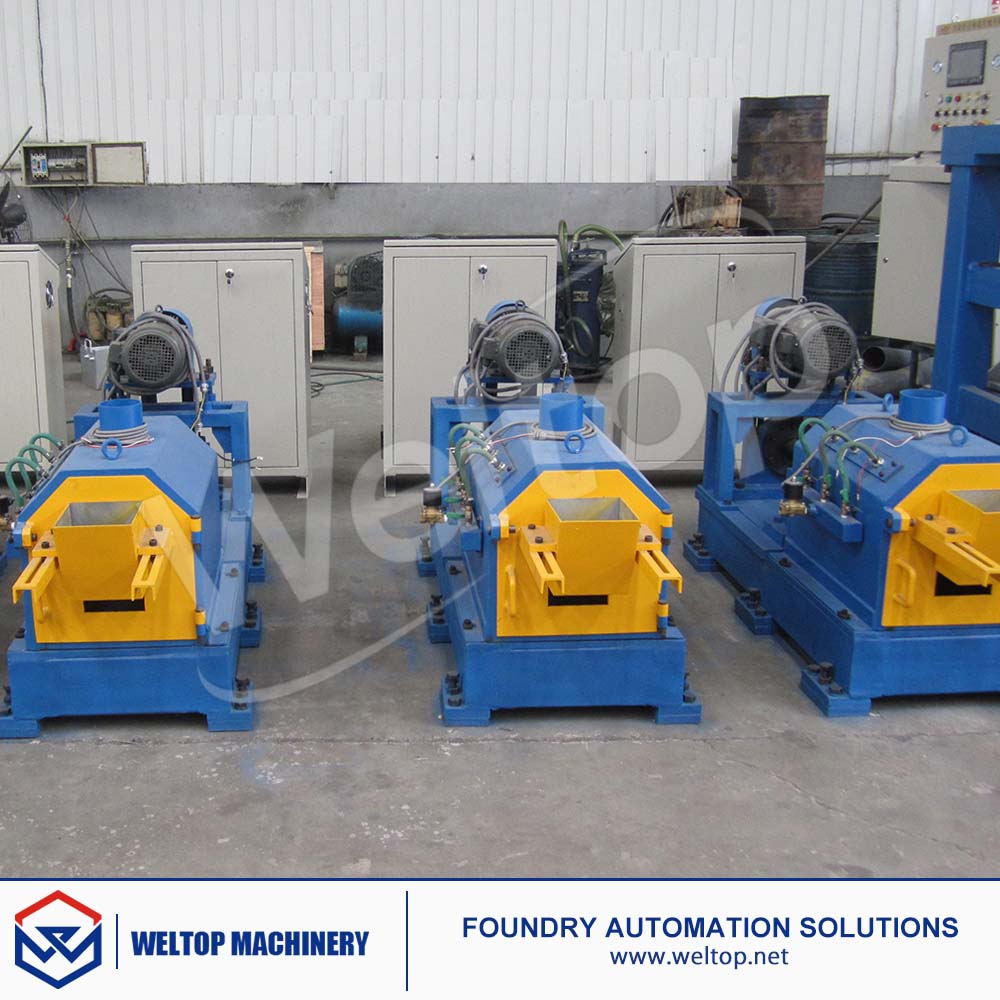

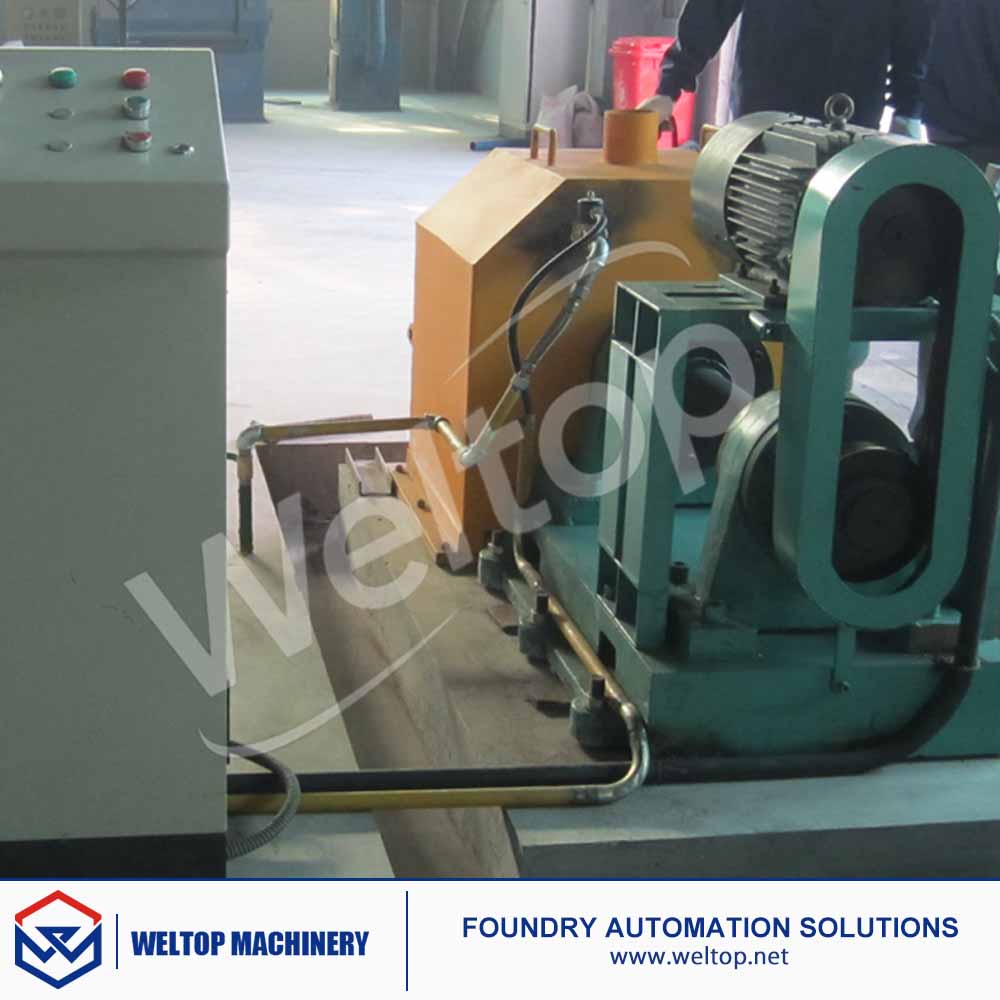

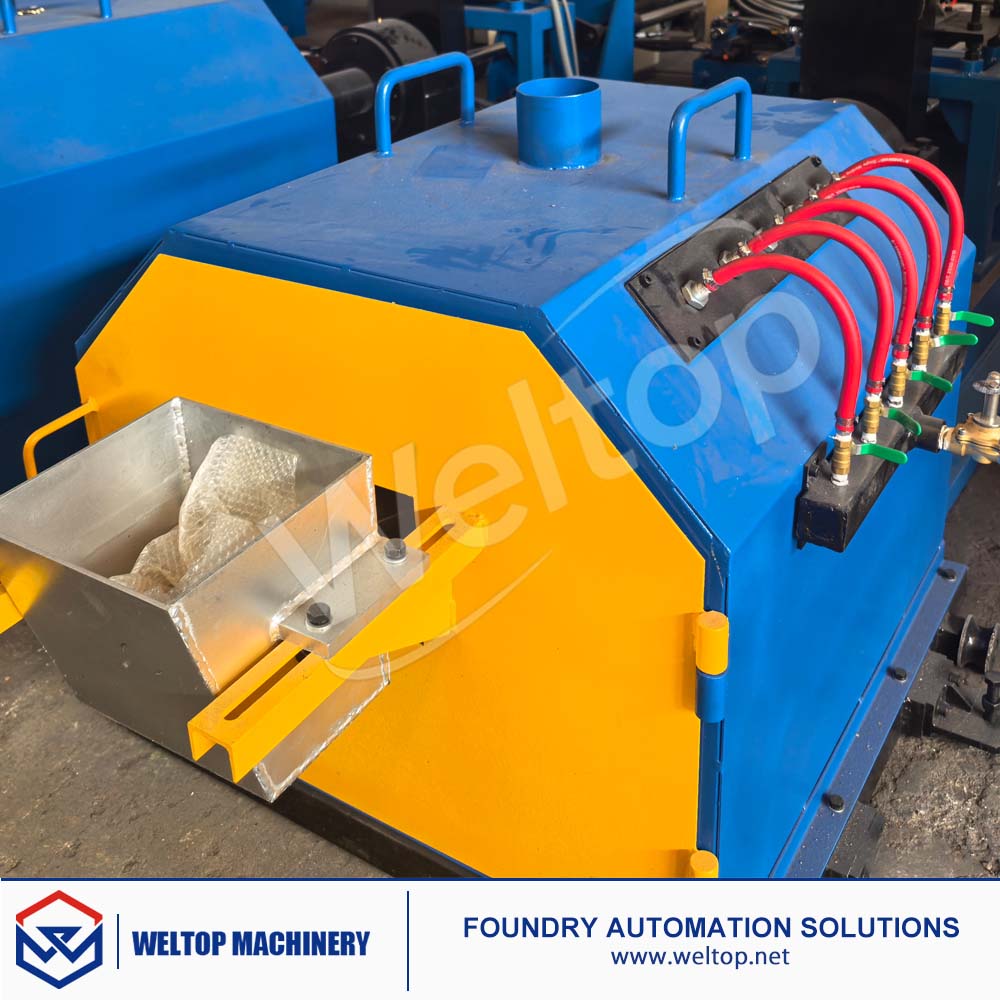

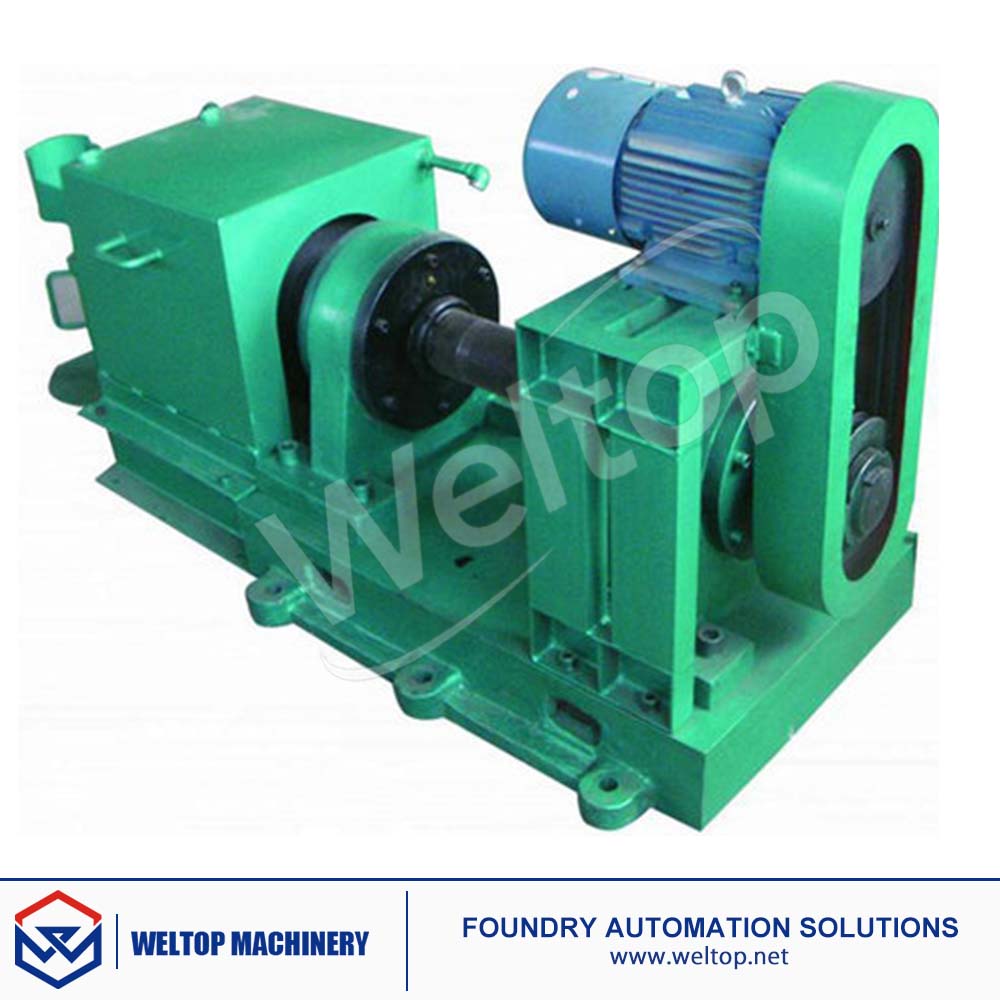

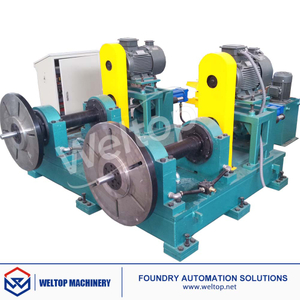

The J512 is a horizontal cantilever centrifugal casting machine designed for small and medium hollow cylindrical castings such as bushings, sleeves and liners.
The machine combines adjustable mold rotation, hydraulic casting extraction and mold cooling in a compact configuration. It can be configured according to casting dimensions, material, mold design and production requirements.
✅ Key Features
01 Adjustable Mold Speed
Variable-speed rotation allows mold speed to be adjusted according to casting diameter, material and process requirements.
02 Cantilever Mold Arrangement
Cantilever configuration provides convenient access for mold installation, pouring and casting removal.
03 Hydraulic Casting Extraction
Hydraulic extraction assists removal of the casting after solidification and reduces manual handling.
04 Mold Cooling
Cooling can be configured according to mold and casting process requirements.
05 Compact Machine Layout
Compact construction is suitable for foundries requiring flexible production with limited floor space.
06 Flexible Mold Configuration
Molds can be designed according to casting OD, ID, length, material and required blank dimensions.
✅ Typical Applications• Bearing Sleeves • Bronze Bushings • Hydraulic Sleeves • Valve Inserts • Flanged Tubes • Pump Components • Hollow Industrial Casting | ✅ To confirm machine selection, please send us:• Material / Alloy Grade • Casting Outer Diameter (OD) Range • Casting Inner Diameter (OD) Range • Casting Maximum Length • Required Output • Existing Mold Information (if available) |
TECHNICAL PARAMETERS
NO. | Parameter | Value | Unit |
1 | Casting Diameter Range | Ф50～Ф200 | mm |
2 | Maximum Length | 400 | mm |
3 | Max. Load (Casting + Mold) | 300 | Kg |
4 | Main Motor Power | 5.5 | Kw |
5 | Spindle Speed | 0～1400 | r.p.m |
6 | Hydraulic Pump Motor Power | 2.2 | Kw |
7 | Ejecting Force | 30 | KN |
8 | Ejecting Stroke | 200 | mm |
9 | Cooling Water Pressure | ≥0.1 | MPa |
10 | Power Supply | Customized | |
Specifications are for machine selection reference. Final configuration is determined according to the casting, mold and production requirements.
