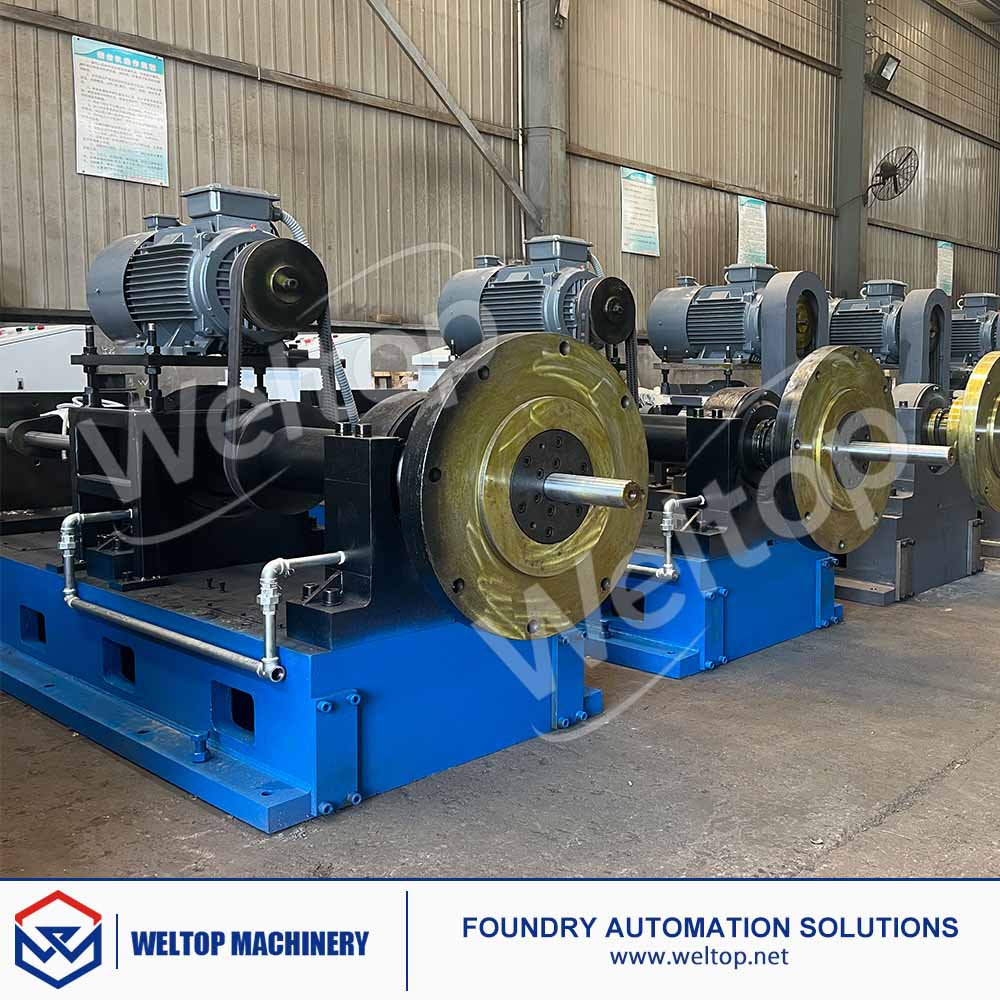

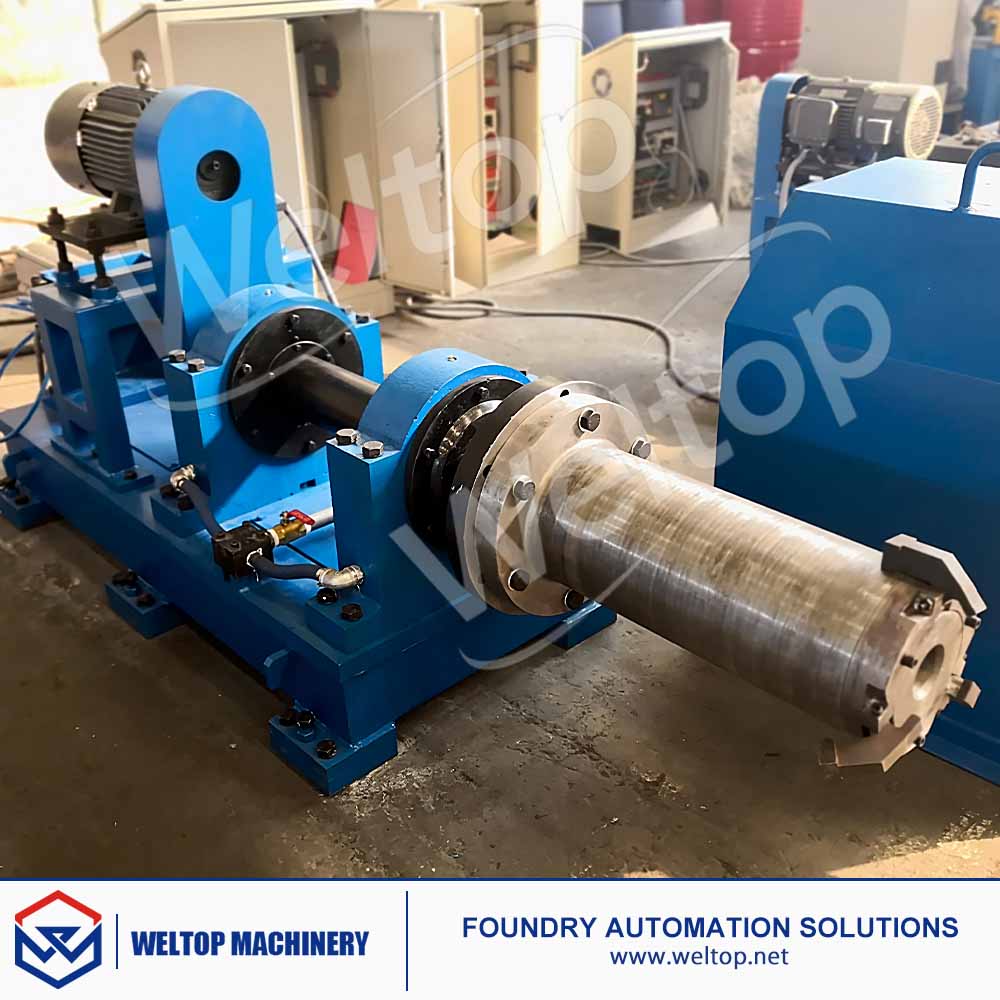

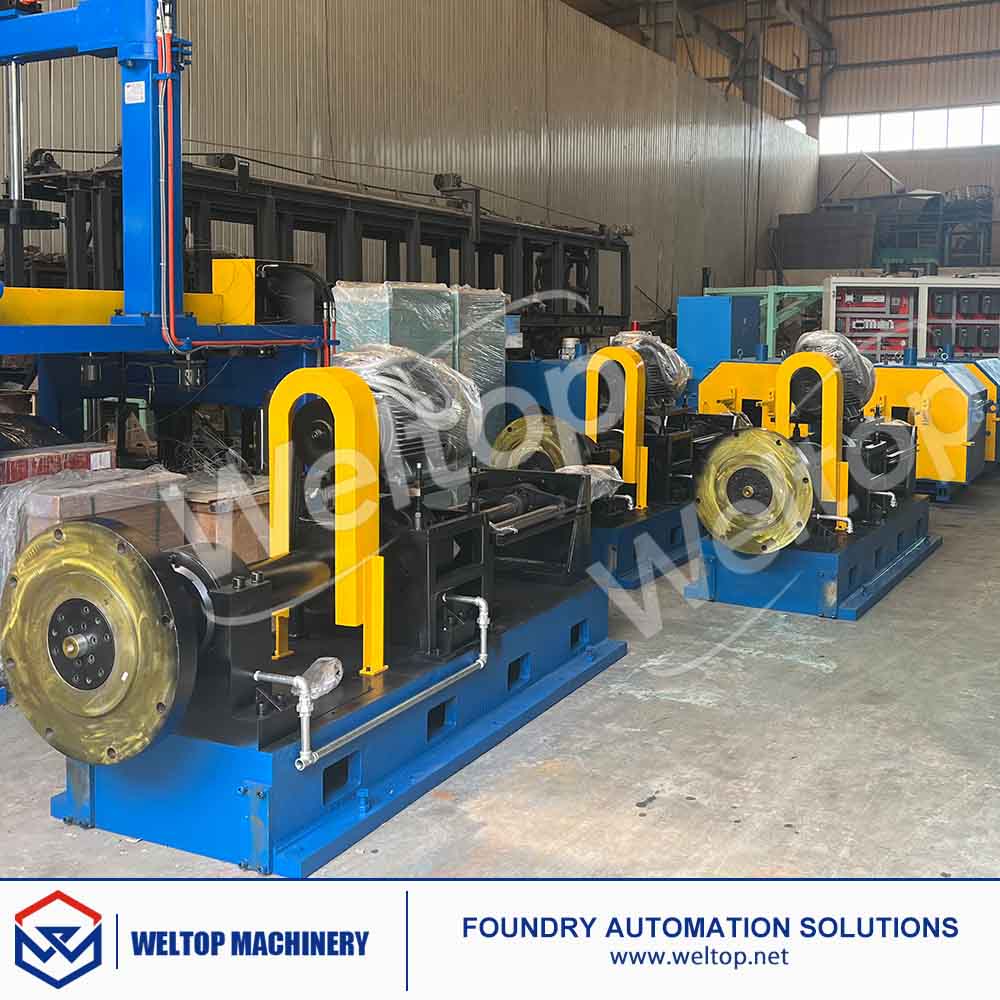

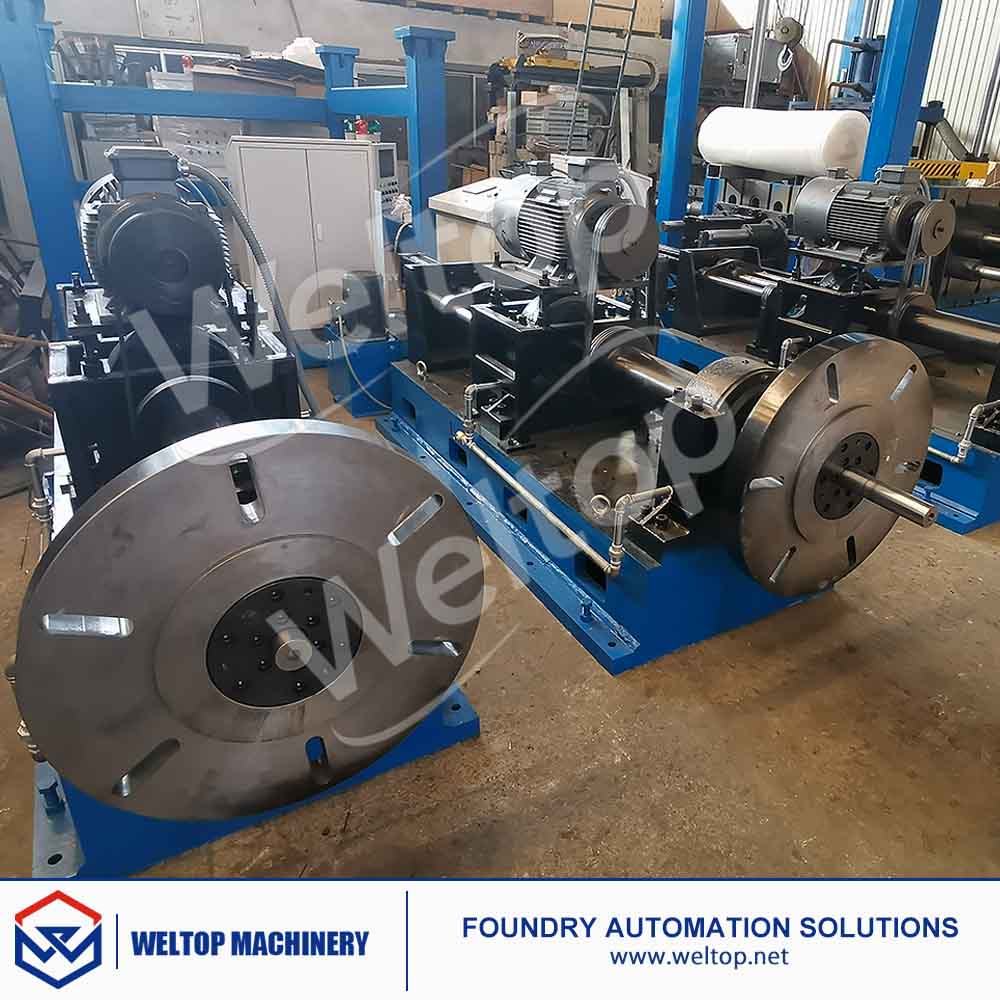

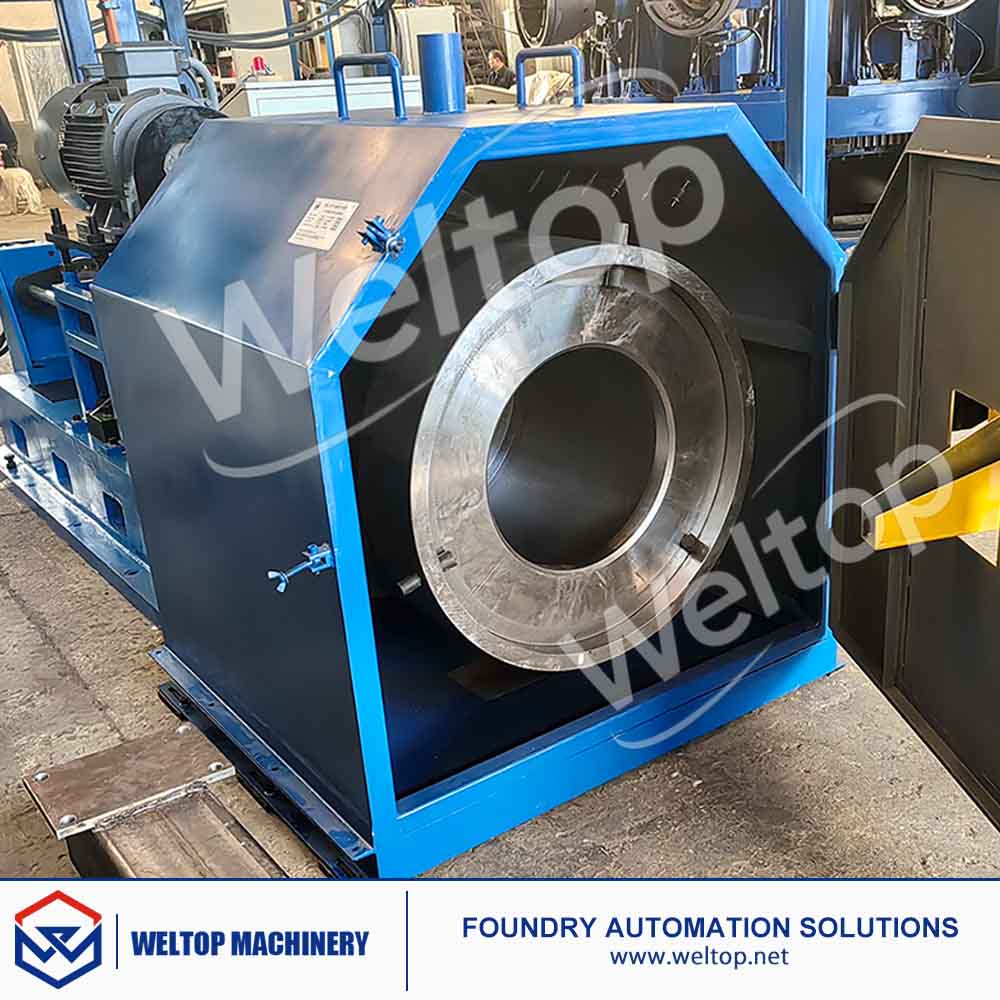

J518 Heavy Duty Horizontal Cantilever Centrifugal Casting Machine

The J518 is a heavy-duty horizontal cantilever centrifugal casting machine designed for large hollow cylindrical castings, including bronze bushings, sleeves and tubes. Machine and mold configurations can be customized according to casting dimensions, alloy, weight and production requirements.

  • J518

  • WELTOP

Availability:

Product Overview

The J518 heavy-duty horizontal cantilever centrifugal casting machine is engineered for large hollow cylindrical castings. Its machine structure, rotation system, mold arrangement and casting extraction mechanism can be configured to suit different casting dimensions, alloys and production requirements.

Key Features

1. Heavy-Duty Machine Structure
Designed to accommodate large molds and heavy rotating loads.

2. Adjustable Rotation Speed
Variable-speed control for different casting diameters and alloys.

3. Hydraulic Casting Extraction
Hydraulic extraction system for removing castings after solidification.

4. Customized Machine & Mold Design
Machine configuration and mold design based on casting specifications and production requirements.

Typical Applications

  • Large Bronze and Brass Bushings

  • Bearing Sleeves

  • Industrial Tubes

  • Hollow Cylindrical Castings


J518插图

Technical parameters

Standard machine specifications are shown below. Machine configuration can be customized according to casting dimensions, material and production requirements.

No.

Parameter

Value

Unit

1

Maximum Casting Diameter

φ800

mm

2

Maximum Casting Length

600

mm

3

Max. Load (Casting + Mold)

1

ton

4

Main Motor Power

22

KW

5

Spindle Speed

0-1000

rpm

6

Hydraulic Pump Motor Power

4

KW

7

Casting Extraction Stroke

300

mm

Discuss Your Casting Requirements

Send us your casting drawings or specifications, including material, OD × ID × length, casting weight and required output.

Our engineering team will evaluate the appropriate machine and mold configuration.
