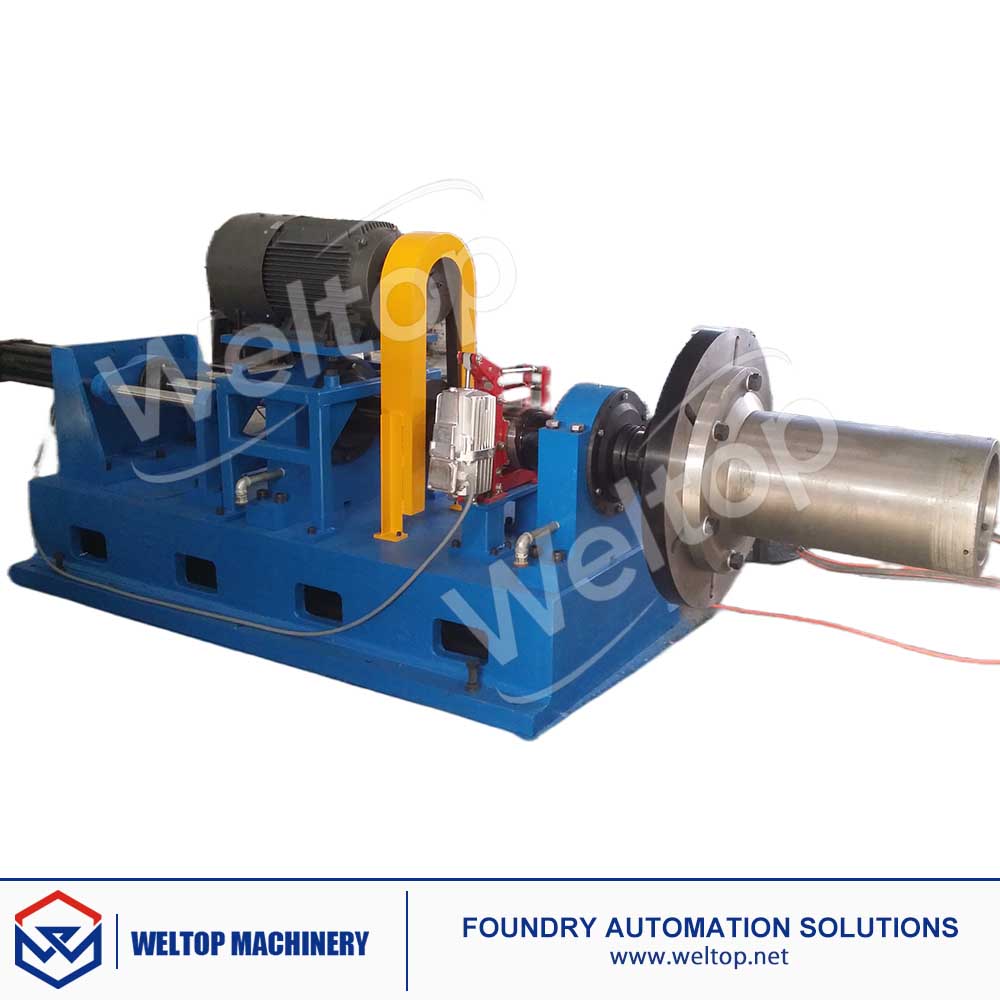

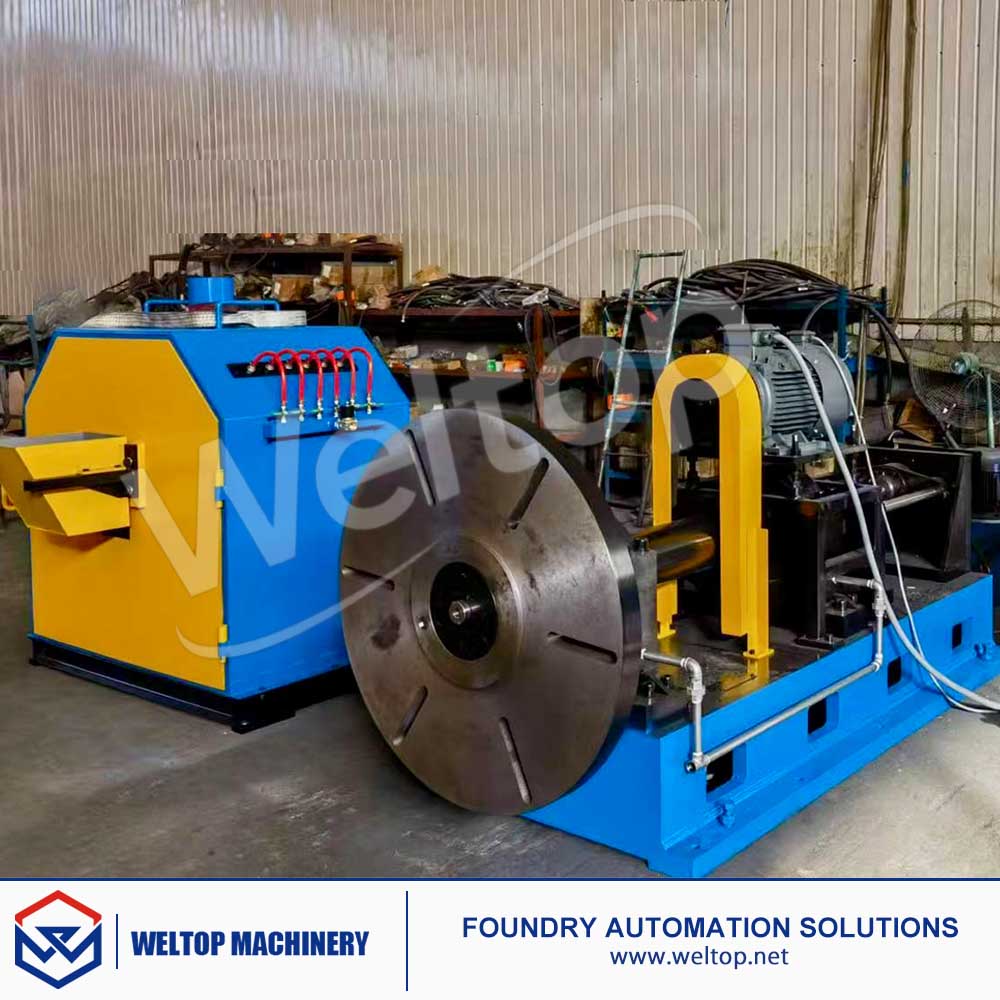

J514 Horizontal Cantilever Centrifugal Casting Machine

Medium-duty centrifugal casting machine for bushings, sleeves, liners and other hollow cylindrical castings.

Casting Diameter: Ø150–400 mm
Max. Casting Length: 500 mm*
Max. Mold + Casting Load: 400 kg

Variable-Speed Rotation | Hydraulic Extraction | Mold Cooling

  • J514

  • WELTOP

Availability:

The J514 is a horizontal cantilever centrifugal casting machine designed for medium-sized hollow cylindrical castings, including bushings, sleeves, liners and industrial tubular components.

Variable-speed mold rotation, hydraulic casting extraction and integrated cooling provide flexible process control for different casting requirements. Machine and mold configurations can be adapted according to casting dimensions, alloy, mold design and required production capacity.

J514插图

Applicable Materials

• Cast Iron

• Ductile Iron

• Bronze

• Brass

• Copper Alloys


Typical Applications

  • Bronze & Brass Bushings

  • Bearing Sleeves

  • Cylinder Liners

  • Industrial Tubes

  • Other Hollow Cylindrical Castings

Key Features

01 Rigid Cantilever Structure
Rigid machine construction designed to support medium-sized molds and casting loads.

02 Variable-Speed Mold Rotation
Adjustable spindle speed for different casting diameters, alloys and process requirements.

03 Hydraulic Casting Extraction
Hydraulic extraction mechanism for removing castings after solidification.

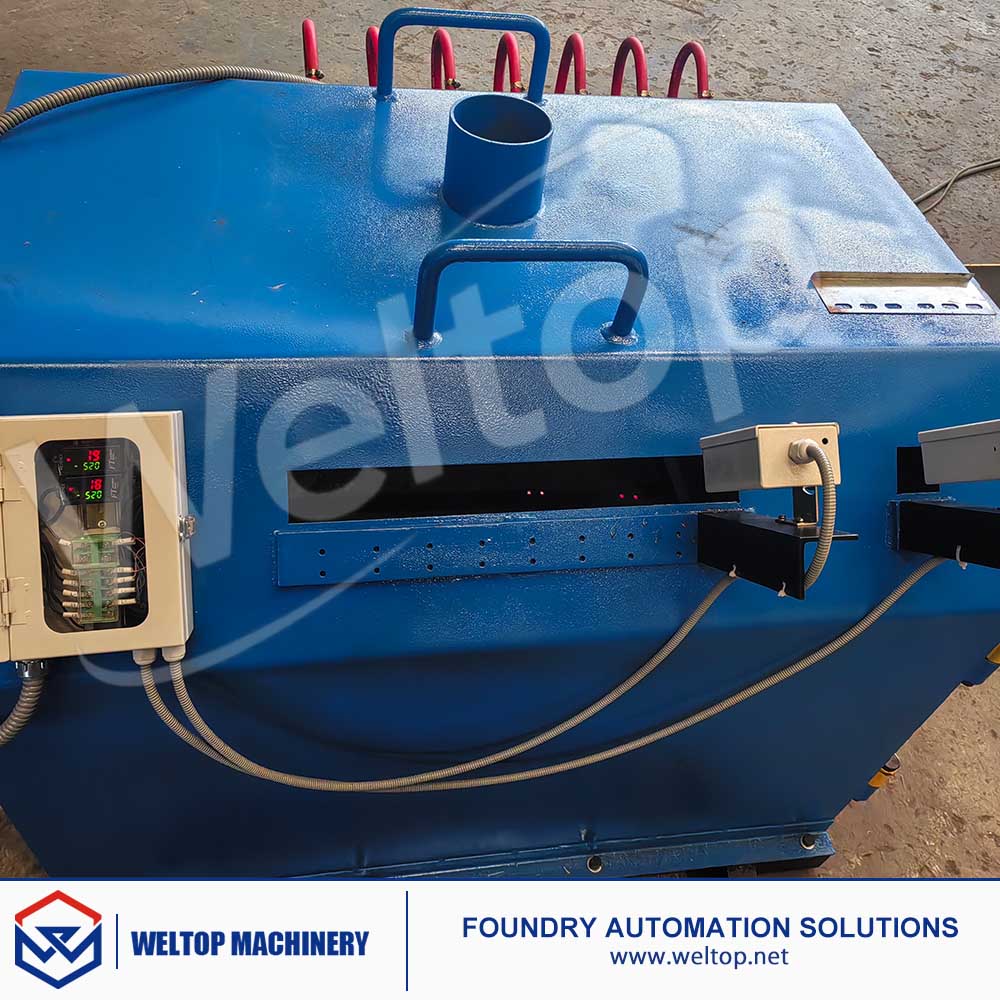

04 Mold Cooling System
Cooling configuration adapted to mold design and casting requirements.

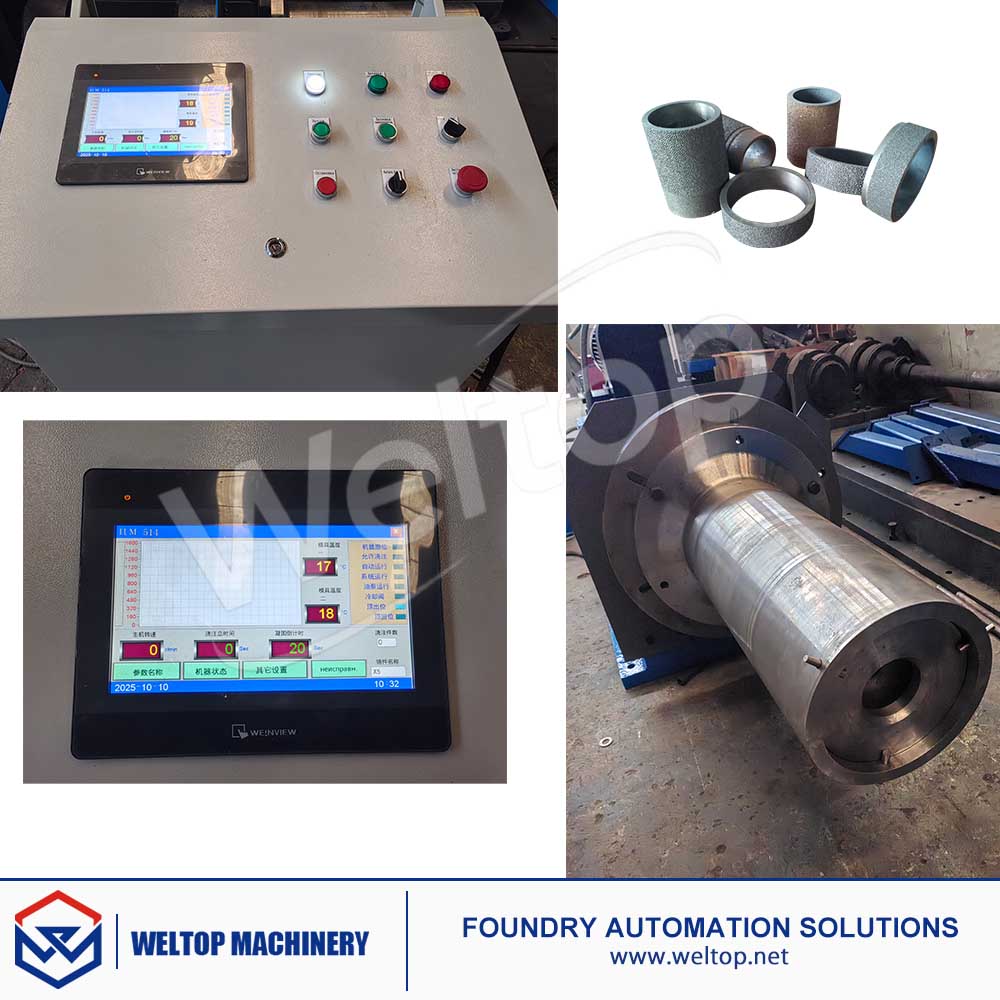

05 PLC + HMI Control
Centralized machine operation and parameter settings.

06 Flexible Mold Configuration
Mold configurations can be adapted to casting dimensions, alloy and production requirements.

castingsTechnical parameters

Machine configuration can be customized according to casting dimensions, material and production requirements.

NO.

Parameter

Value

Unit

1

Maximum Diameter of Casting

Ф400

mm

2

Minimum Diameter of Casting

Ф150

mm

3

Maximum Length

500

mm

4

Casting Length at Maximum Diameter

≤350

mm

5

Casting Diameter at Maximum Length

≤φ200

mm

6

Max. Load (Casting + Mold)

400

kg

7

Main Motor Power

7.5

kW

8

Spindle Speed

0~1200

r.p.m

9

Hydraulic Pump Motor Power

2.2

kW

10

Ejecting Force

30

kN

11

Ejecting Stroke

300

mm

Let Us Evaluate Your Casting

Send us your casting dimensions and production requirements. Our engineering team will evaluate the appropriate machine and mold configuration for your application.

Please provide:

✓ Material / Alloy Grade
✓ OD × ID × Length
✓ Casting Weight
✓ Required Output
✓ Existing Mold Information, if available
